GBF PTFE Lined Chemical Centrifugal Pump

1.Corrosive medium transportation

2.Particle-containing medium transfer

3.Stable pressure boosting and water supply

4.Mechanical seal anti-leakage

5.High-efficiency and energy-saving operation

1.Applicable Medium: Acid & alkali solutions, salt solutions, corrosive chemical media, corrosive media with small particles

2.Temperature Range: Medium temp: -20℃ ~ 120℃; Env temp: -10℃ ~ 40℃

3.Installation Env: Indoor/Outdoor (rainproof & sunproof for outdoor), horizontal installation, fixed foundation

4.Applicable Industries: Chemical, petroleum, metallurgy, pharmaceutical, electroplating, printing and dyeing, wastewater treatment

5.Env Limits: Relative humidity ≤95% (no condensation); Altitude ≤1000m (custom motor for higher altitude)

I. Extreme corrosion resistance, suitable for complex working conditions

1. The flow-through components are integrally thermoformed from PTFE/FEP/PFA and other fluoroplastics, resistant to strong acids, strong alkalis, strong oxidants, organic solvents, and other corrosive media. They can transport corrosive liquids of any concentration for extended periods without aging or toxic decomposition.

2. Wide temperature range (typically -85℃ to +150℃, up to +200℃ in some operating conditions), it can replace precious metals such as 316L stainless steel and titanium alloys, significantly reducing procurement and maintenance costs.

3. Reinforced with cast steel inlet and outlet bodies, balancing the corrosion resistance of the fluoroplastic liner with the mechanical strength and pressure resistance of the metal shell, preventing deformation and liner detachment.

II.Compact and efficient structure, flexible installation

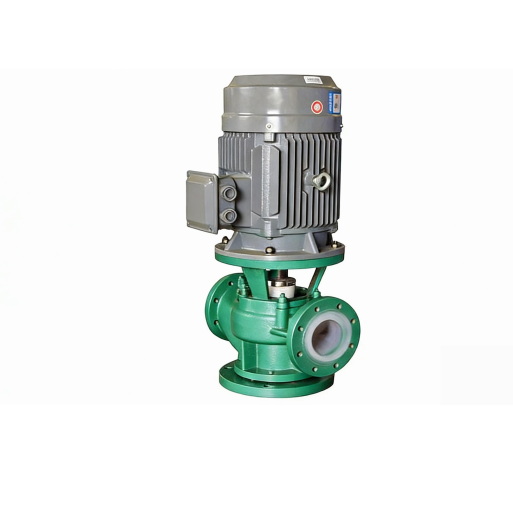

1. Vertical structure with inlet and outlet of the same diameter and coaxial axis, allowing direct installation into piping systems. It occupies a small area and can be used outdoors with a protective cover, adaptable to various piping layouts.

2. Direct connection between the impeller and motor results in a short axial dimension, high transmission efficiency, balanced radial and axial loads, smooth operation, low vibration and noise, and no need for additional lubrication or cooling water, thus saving energy.

3. Optimized hydraulic model with wide and smooth flow channels, excellent NPSH, low radial force, high efficiency, and stable operation.

III. Reliable sealing and long service life

1. Standard configuration includes an external bellows mechanical seal (PTFE bellows or silicon carbide/hard alloy sealing surface optional), which is wear-resistant, corrosion-resistant, intuitively adjustable, and can be maintained without disassembly, resulting in low leakage risk and extended service life.

2. Particulate-resistant mechanical seal combinations can be selected based on the medium containing particles, offering strong adaptability.

IV. Easy maintenance and low operating costs

1. Modular design allows for easy removal of all rotor components by unscrewing the pump coupling seat nut, eliminating the need to disassemble the piping and enabling quick and efficient maintenance.

2. High interchangeability of flow-through components, readily available spare parts, extended maintenance cycles, and significantly reduced overall operation and maintenance costs.

V. Highly adaptable and widely applicable

1. Supports series and parallel operation, flexibly matching different flow rate and head requirements, suitable for conveying corrosive media in various industries such as chemical, metallurgical, electroplating, and environmental protection.

2. Can be customized to meet special working conditions such as high temperature, high pressure, and particle content.

1. Chemical Industry: Transportation of hydrochloric acid, sulfuric acid, caustic soda, organic solvents, dye mother liquor, and pharmaceutical/pesticide intermediates.

2. Metallurgical Industry: Circulation of hydrometallurgical electrolytes, steel pickling solutions, electroplating solutions, and passivation solutions.

3. Electroplating Surface Treatment: Transportation of chromium/nickel/zinc plating solutions, anodizing solutions, degreasing solutions, and neutralizing solutions.

4. Environmental Water Treatment: Transportation of chemical/electroplating/metallurgical wastewater, desulfurization and denitrification solutions, and acid-base neutralization solutions.

5. Paper Industry: Circulation of black liquor, white liquor, bleaching solutions, and acid/alkali solutions.

6. Electronics Industry: Transportation of electronic-grade acids/alkalis, etching solutions, and developing solutions.

7. Food Industry: Transportation of corrosive media such as citric acid, acetic acid, and food additives.

1. Power on

1. After filling with liquid and venting, close the outlet valve and ensure there is no jamming when turning the engine.

2. Power on and start the engine. Once the pressure stabilizes, slowly open the outlet valve to adjust to the operating condition.

3. Check: No leakage, no abnormal vibration or noise, and normal current.

II. Operation Monitor pressure, flow rate, and current;

parameters must be stable and not exceed rated limits. Dry running, exceeding temperature or pressure limits, and frequent start-stop operations are strictly prohibited.

III. Shutdown

1. Normal shutdown: Close the outlet valve → Disconnect power → Close the inlet valve → For long-term shutdowns, drain the medium.

2. Emergency shutdown: Press emergency stop button → Disconnect power → Close inlet and outlet valves → Troubleshoot.

IV. Core Taboos

1. Dry running and idling are strictly prohibited (must be run with full liquid).

2. Exceeding the flow rate, head, or temperature limits is strictly prohibited.

3. Power must be disconnected and the medium drained before maintenance.

1. Unable to start / Startup tripsreason: Voltage mismatch / Motor failure / Impeller jammingdeal with: Check voltage and grounding / Inspect the motor / Clean foreign objects by turning the machine.

2. No export pressure / Insufficient flowreason: Idle running with insufficient liquid / Impeller reversing / Pipeline blockage / Impeller weardeal with: Full liquid venting / Adjust motor phase sequence / Clean pipeline / Replace impeller

3. Severe seal leakagereason: Damaged seal / Loose gland / Medium contains particlesdeal with: Replace mechanical seal / Adjust gland / Upgrade wear-resistant seal

4. Excessive vibration and noisereason:Shaft misalignment / Loose foundation / Impeller imbalance / Cavitationdeal with: Realign / Reinforce the foundation / Align the impeller / Reduce the suction head

5. Motor overheating due to overloadreason: Operating beyond recommended operating conditions / High medium viscosity / Bearing damagedeal with: Adjust to rated parameters / Dilute medium / Replace bearing

6. Lining peeling/crackingreason: Overheating/Dry grinding/Installation impactdeal with: Replace the lining / Strictly control the temperature / Do not run dry / Properly install

7. Leaks at pipe connectionsreason: Loose flange / Damaged gasket / Deformed pipelinedeal with:Tighten flanges / Replace gaskets / Align piping
