Basic information of the product

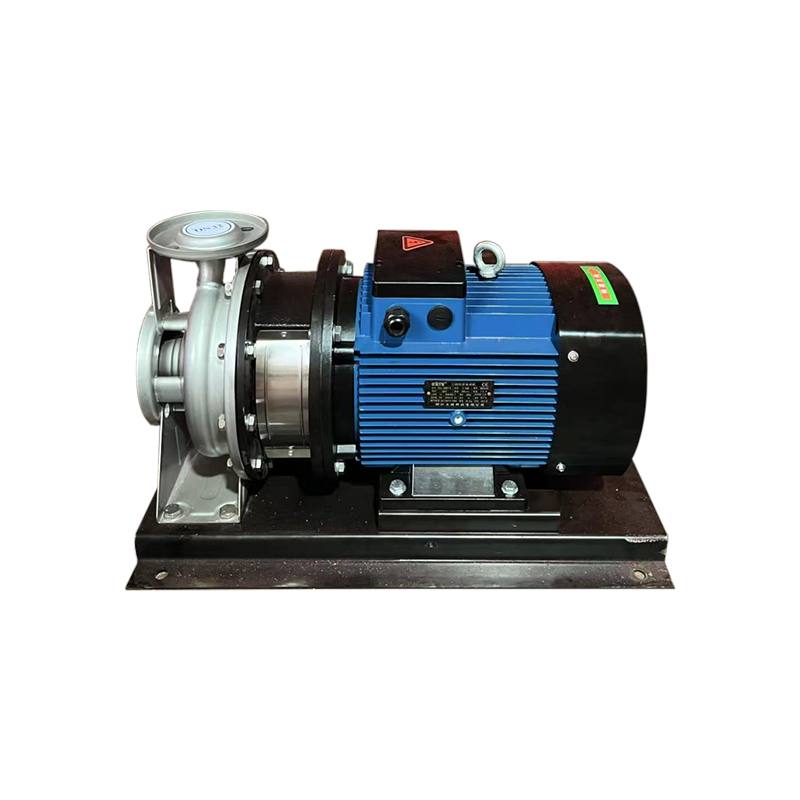

ZS stainless steel horizontal single-stage centrifugal pump is a pump shaft direct connection, consisting of a pump, a pump shaft and a standard motor.
Usage Environment
Liquids with temperatures between -20°C and +100°C; the suction pressure of the pump should be ≤1.6MPa, and the maximum working pressure of the pump system should also be ≤1.6MPa; the ambient temperature should be below 40°C, and the relative humidity should be below 95%; the volume content of solid particles in the transported medium should not exceed 0.1%, and the particle size should be less than 0.2mm. If the medium contains fine particles, it is recommended to indicate this when ordering so that wear-resistant mechanical seals can be used; the pump should be installed in a ventilated and anti-freezing place, and avoid installing it outdoors. A suitable cover should be configured to prevent water from entering the electrical components or condensation. The pump should be installed horizontally on the base, with the horizontal direction being the suction port of the pump and the vertical direction being the discharge port of the pump. In order to facilitate inspection and maintenance, sufficient space should be left around the unit.
Product Advantages
ZS304 Stamping Horizontal Centrifugal Pump: Compact Design for Space-Saving Installations
It has the characteristics of large flow, high head, stable operation, low noise, etc. The operation efficiency can reach more than 80%, which can effectively improve energy utilization efficiency and reduce users' energy consumption.
Wide application range, low noise, good adjustment performance, low failure rate and easy maintenance
Product Features
Strong corrosion resistance, compact structure, small size, high efficiency and energy saving, stable and reliable operation
Technical Parameters
| Pump Type | ZS304 stamping horizontal centrifugal pump |
| Material | 304 Stainless Steel |
| Drive type | Motor |
| Maximum flow | 200m3/h |
| Maximum lift | 70m |
| Maximum caliber | 100mm |
| Maximum Power | 37kw |
| Protection level | IP55 |
| Insulation class | F-Class |
| Standard voltage | 50Hz, 1*220V, 3*380V |
Product Usage
Water supply: water plant filtration, transportation, zoned water delivery and main pressure boosting; Industrial pressure boosting: process water system, cleaning system; Industrial liquid transportation. Boiler water supply, condensation system, cooling and air conditioning system, machine tool supporting, weak acid and alkali transportation; Water treatment: evaporation system or separator, swimming pool, etc.; Farmland irrigation, medical and health, etc.
Product Operation Guide
Confirm the direction of the motor: Jog the motor to confirm that the pump shaft rotates in the correct direction. It should rotate clockwise when viewed from the top of the motor. Formal start: Press the start button and listen for any noise in real time to confirm that the pump starts and stops normally. Adjust the outlet valve: After reaching the rated speed and stable outlet pressure, gradually open the pump outlet valve and adjust the flow rate to ensure that it is within the process specification range.
Frequently asked questions
1. Pump body wear
Regularly inspect and clean the pump to prevent heavy objects from hitting the pump body, and clean the pipeline before operation to keep the medium clean.
2. Bearing failure
Ensure that the bearings are properly lubricated, that they are not overloaded during operation, that parts are not arbitrarily modified, and that maintenance and repairs are professional and standardized.
3. Leakage problem
Regularly inspect, clean and replace necessary parts, strengthen installation and maintenance work, and ensure that the installation balance meets the requirements.
4. The water pump is noisy
Install the water pump, replace the motor ball bearing, correct the bent water pump shaft or adjust the relative position of the water pump and motor.
