Basic information of the product
A device installed inside a container, mainly used to transfer fluid from one low-pressure area to another high-pressure area
Usage Environment
The submersible pump can work in underwater environments and flammable and explosive environments. It can be directly immersed in the liquid being transported and is suitable for use in swimming pool water circulation systems and hazardous areas such as petrochemicals.
Product Advantages

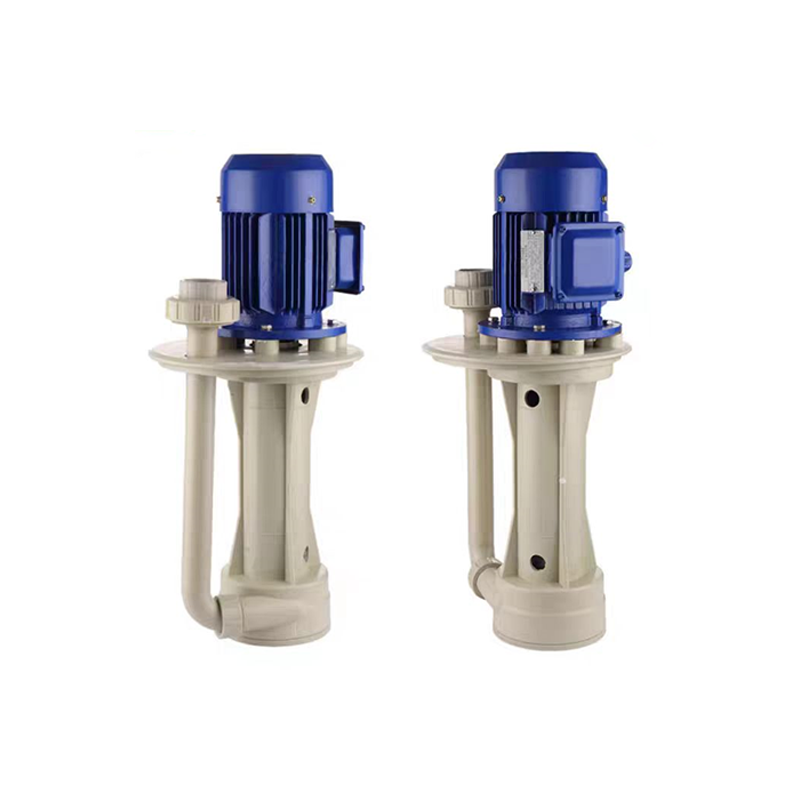

Corrosion-resistant Engineering Plastic Submerged Pump Type FYS
No mechanical seal, resistant to idling; save space, easy to install; dry liquid seal, low failure rate; strong acid and alkali resistance and corrosion resistance;Wide range of applicationsHigh strength and high efficiency
Product Features
1. Corrosion and high temperature resistance: The submersible pump in the tank is usually made of FRPP, CFRPP, CPVC and PVDF, which have strong corrosion resistance and high temperature resistance. These materials can effectively resist the erosion of corrosive media such as acid and alkali liquids, wastewater and exhaust gas, ensuring the long-term stable operation of the equipment.
2. High efficiency and energy saving: The submersible pump in the tank is reasonably designed and can directly suck liquid from the bottom of the tank, reducing pipeline resistance and improving work efficiency. In addition, the use of high-efficiency motors further reduces energy consumption and achieves energy-saving effects.
3. Easy installation: The submersible pump in the tank is mostly vertical in design, easy to install, and suitable for various working conditions. It occupies a small area and is easy to install and use in limited spaces.
Technical Parameters
| Pump Type | Submersible pump in tank |
| Material | Reinforced glass fiber reinforced polypropylene, chlorinated polyvinyl chloride, polyvinylidene fluoride |
| Drive type | electric |
| Maximum flow | 100M3/H |
| Maximum lift | 4M |
| Installation Type | Vertical |
| Maximum caliber | 100 |
| Maximum Power | 15KW |
| Protection level | IP44 |
| Insulation class | F-Class |
| Standard voltage | 380V |
Product Usage
Environmental protection industry
It is widely used in etching lines, wastewater treatment, washing towers, etc., as well as various liquid circulation and transportation operations in chemical stirring tanks or reaction tanks. It can also be used for heat exchange circulation and filtering operations with filters.
Medicine, Chemicals
Consider temperature: When transporting high-temperature liquids, choose a pump made of high-temperature resistant materials and pay attention to cooling requirements.
Based on head and flow: Determine the required head and flow according to actual process requirements, and select a pump with appropriate power and model.
Product Operation Guide
How to use and operate the machine
Pre-start inspection: Confirm that the pump specifications are suitable for the chemical properties used, check the motor wiring, pipeline valve opening and liquid conditions. Monitoring during operation: Check whether the outlet flow is normal, and observe whether there are any abnormal sounds or vibrations during the operation of the pump.
Regular maintenance
Daily inspection (daily): Check the operating status of the equipment, including the water pump, motor, control cabinet, etc., to see if there is any abnormal vibration, noise, or heat; observe whether the inlet and outlet water pressure and flow are normal; check whether there is any leakage at the pipe joints; ensure that the lighting and ventilation in the pump room are good, and the temperature and humidity are appropriate, and clean the dust and debris on the surface of the equipment to keep the pump room clean. Check the entrances and exits regularly to prevent blockage by foreign objects; check the motor bearings; and ensure that the check valve operates normally.
Frequently asked questions
1.Water inlet is blocked
If the water inlet of the pump is blocked by debris, it will cause poor water inflow, affect the water pump's ability to absorb water, and cause it to not operate normally.
2. Impeller speed is too high or too low
The impeller speed should be kept within a certain range. Too high or too low will affect the normal operation of the submersible pump.
3. Unstable power supply voltage
Voltage that is too high or too low will damage the motor of the submersible pump, causing the pump to not operate normally.
4. Poor sealing
The sealing performance of the submersible pump is very important. If the seal is not tight, it will cause the pump to leak and affect the normal operation of the pump.
