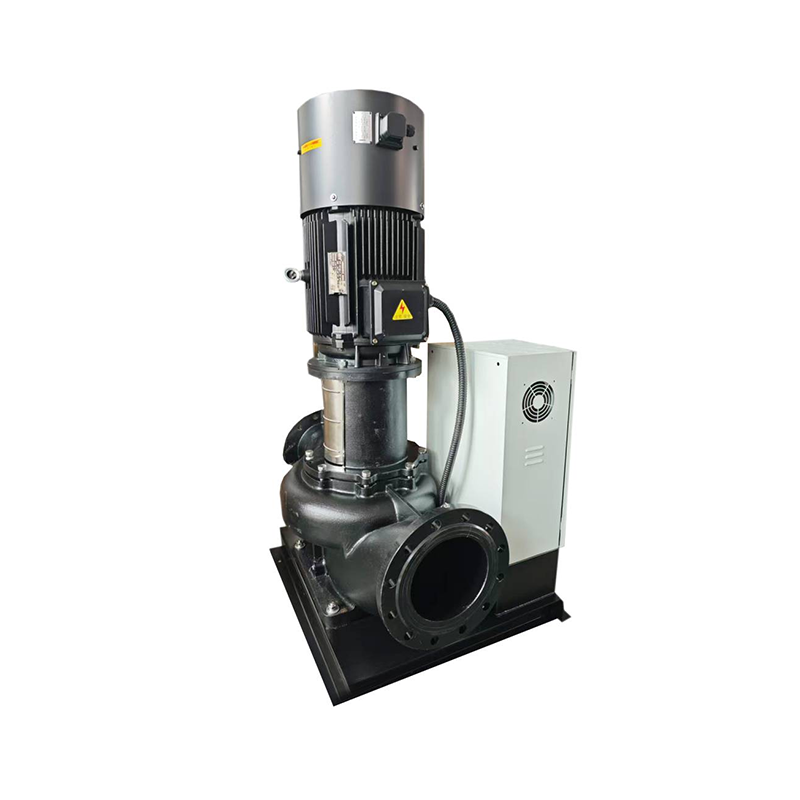

Introduce the basic situation of the product
TD pump is a single-stage vertical pipeline centrifugal pump, mainly used for the transportation of various media, including tap water, industrial liquids, etc.
Usage Environment
1. Liquid conditions：TD pumps are suitable for use in clean, thin, non-corrosive, non-flammable and explosive liquids, and do not contain any solid particles and fibers that may cause mechanical or chemical damage to the pump. Using the pump in the case of viscous or high-density liquids will cause the pump's characteristic curve to drop and energy consumption to increase.
2. The liquid temperature range of the TD pump is -15℃ to 110℃, and the ambient temperature can reach up to +40℃, which is suitable for liquid transportation under various temperature conditions.
Product Advantages
TD Circulation Pump for Efficient Heating and Cooling
Advanced hydraulic model and optimized design, high efficiency, energy saving, stability and reliability
Large flow, high head and high efficiency
Product Features
1. Compact structureTD pump adopts vertical structure design, occupies a small area, is easy to install and maintain, and is particularly suitable for occasions with limited space.
2. High efficiency and energy saving: By optimizing the impeller design and flow channel structure, the kinetic energy conversion efficiency of the fluid is improved, energy consumption is reduced, and energy-saving effects are achieved
3. Anti-corrosion performanceTD pumps have a high degree of flexibility in material selection. Stainless steel, bronze or plastic can be selected according to the characteristics of the medium to ensure the pump body's resistance to corrosive or abrasive fluids.
Technical Parameters
Pump Type | TD pipeline pump |
Material | Stainless steel, bronze or plastic |
Drive type | electric |
Maximum flow | 630m3/h |
Maximum lift | 81 |
Installation Type | Vertical |
Maximum caliber | 250 |
Maximum Power | 132 |
Protection level | IP54 |
Insulation class | F-Class |
Standard voltage | 380v |
Product Usage
Domestic and industrial water supply: TD pumps are widely used in domestic and industrial water supply systems due to their high efficiency and reliability. They can be used to transport clean water to support daily water needs such as drinking water, washing and sanitary water. In the industrial field, TD pumps can be used in cooling systems, heating systems, and district heating systems for transporting hot and cold water.
Cooling and air conditioning systems: TD pumps are also suitable for cooling and air conditioning systems. They can be used to deliver cooling water to cooling towers, or for circulating water supply in air conditioning systems. TD pumps in these applications usually need to be able to withstand lower temperature liquids, such as cold water.
Chemical and pharmaceutical industries: In the chemical and pharmaceutical industries, TD pumps are favored for their corrosion resistance and the requirements for liquid purity. They can be used to transport corrosive chemicals such as acids and alkalis, as well as various chemical solvents used in the pharmaceutical process.
Building pressurization: TD pumps can also be used to pressurize water in buildings, especially in high-rise buildings, where they ensure that water can be effectively delivered to each floor. In addition, they are also suitable for applications such as garden sprinkler irrigation, cooling tower water supply, and long-distance water delivery.
Product Operation Guide
1.Check before startingBefore starting the TD pump, make sure that all parts are installed correctly and there is no looseness. Check whether the lubricating oil and cooling water systems are normal, and ensure that there is no debris in the pump body.
2. Startup steps: Perform startup operations in accordance with the requirements of the equipment manual, which usually includes steps such as connecting the power supply, starting the motor, and observing the operating status of the pump. Note that the outlet valve should be opened slowly during startup to reduce the starting load.
3. Operation monitoring: During operation, regularly check the vibration, temperature, pressure and other parameters of the pump to ensure that the pump operates within the normal working range. Pay attention to whether there is any abnormal sound or vibration and deal with it in time.
4. Shutdown operation: Close the outlet valve before shutdown, let the pump run under low load for a period of time, then gradually stop the motor, and finally shut down the cooling water and lubrication system.
Frequently asked questions
1.Water leakage from mechanical seal
No water or insufficient water: Check the inlet pipe to see if there is any blockage or the inlet valve is not open. Clear the blockage and open the valve.
2. The motor is hot
Pump body leaks: Check whether the mechanical seal is loose or worn and needs to be reinstalled or replaced.
3. The water pump is noisy
Excessive noise: Check the pump shaft and bearings for wear and tear. Repair or replace them is necessary.
