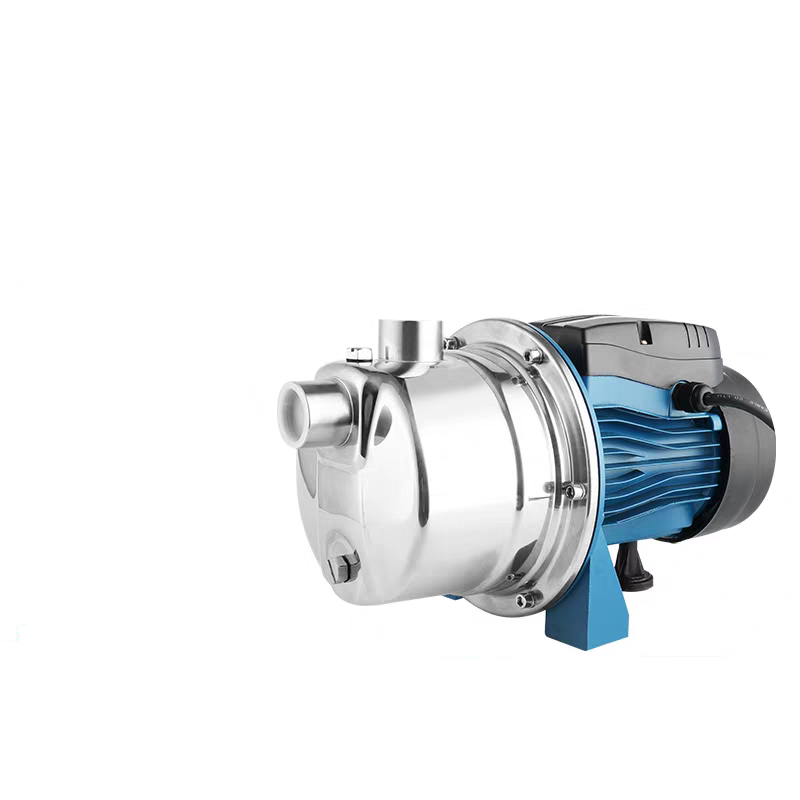

Stainless Steel Self-Priming Booster Pump

1. Self-priming pumping function

No manual priming is required. The pump can automatically draw water from low-level sources such as well water, water tanks, and reservoirs. The suction lift can reach 3-8 meters, solving the problem of not being able to directly fill water sources without negative pressure.

2. Water pressure boosting function

To address the issue of insufficient tap water pressure in households, this product stabilizes and increases pipe water pressure to meet the pressure demands of multiple simultaneous water uses, such as showering, water heaters, and kitchen faucets, preventing problems like reduced or fluctuating water flow.

3. Automatic start/stop control

Integrated pressure switch or intelligent controller, automatically starts when water is used and automatically stops when water is cut off, requiring no manual operation, saving energy and electricity, and preventing dry running from damaging the pump body.

4. Corrosion-resistant conveying function

The flow-through components are made of 304 stainless steel, which can safely transport clean water sources such as tap water, well water, and soft water. It is rust-resistant, pollution-free, and ensures healthy water use.

5. Low-noise and stable operation

function With optimized pump body structure and motor design, it operates with low noise, making it suitable for home environments; at the same time, it has a stable flow output to meet the continuous water demand of small-scale scenarios such as garden irrigation and RV water supply.

6. Anti-dry-burning protection function

Some models are equipped with an anti-dry-burning device that automatically cuts off power when the pump chamber is short of water, preventing the motor from overheating and being damaged due to idling, thus extending the service life of the equipment.

I. Media Requirements

1. Applicable to: Clean water such as tap water, well water, and soft water.

2. Parameters: Temperature 0℃~40℃; Particle size ≤0.5mm, content ≤0.1%

3. Contraindications: Strictly prohibited from transporting sewage, oily liquids, and strong acid or alkali fluids.

II. Installation and Operation Conditions

1. Ambient temperature and humidity: -10℃~45℃, humidity ≤90%, no condensation; outdoor areas require rain protection.

2. Site: Flat and firm, with ≥0.2m of maintenance space, away from fire sources and equipment with strong vibrations.

3. Electrical: AC 110V/220V/230V, 50/60Hz; motor protection ≥IP44.

III. Special Scenarios

1. Well water pumping: The suction lift is controlled within the rated range, and a filter screen and bottom valve are installed at the inlet.

2. High-rise pressurization: Installed after the water meter near the water consumption end to reduce pressure loss.

1. Made of stainless steel, durable and hygienic.

The flow-through components are made of 304 stainless steel, which is corrosion-resistant and does not easily rust. It can directly transport clean water sources such as tap water and well water, without the leaching of heavy metals, ensuring the health of the water used and meeting long-term household needs.

2. Self-priming + booster dual function, multi-purpose machine

No manual water filling is required; it can directly draw water from low-level wells and water tanks. At the same time, it solves the problem of insufficient tap water pressure, stably increases the water pressure for showers and kitchens, and meets the dual needs of water pumping and pressure boosting.

3. Automatic start/stop, energy saving and worry-free.

With an integrated pressure switch, it automatically starts when water is used and automatically stops when water is cut off, requiring no manual operation, avoiding idling losses, saving more electricity than a manual pump, and suitable for unattended home scenarios.

4. Low-noise operation, suitable for home environments

With optimized pump body structure and motor design, it operates with low noise, will not disturb daily life, and can be installed in indoor areas such as kitchens and balconies.

5. Easy to install, no complicated modifications required.

Compact in size, it supports wall-mounted or floor-mounted installation, and the interface is compatible with regular household water pipes. No professional civil engineering or pipeline modification is required, and ordinary users can install and debug it themselves.

6. Multiple protections extend lifespan

Some models are equipped with anti-dry burning and overload protection functions, which automatically cut off the power when there is a lack of water or abnormal voltage, to avoid damage to the motor and reduce later maintenance costs.

1. Increased water pressure in household kitchens and bathrooms

To address the issue of insufficient water pressure in high-rise residential buildings and older communities, this product is installed after the water meter or at the water inlet of the kitchen and bathroom. It steadily increases the water pressure of showers, water heaters, and kitchen faucets, solving the problem of weak or fluctuating water flow and improving the comfort of bathing and washing vegetables.

2. Water supply via well water/water tank pumping

Suitable for rural self-built houses, villas and other scenarios without municipal water supply, it can directly draw ground well water and rooftop water tank water and deliver it to all water points in the house without the need for manual filling, achieving convenient tap water supply.

3. Garden and courtyard irrigation/car washing

Connect to a patio faucet or small water tank to provide stable water pressure for watering garden plants and spraying lawns; it can also be used for car washing at home, with sufficient water pressure for more efficient cleaning, replacing the laborious operation of a manual water gun.

4. Temporary water supply for RVs/camping

When used with a portable water tank, it provides drinking water for RVs and outdoor camping, meeting needs such as washing and washing vegetables; it is compact, easy to install, and compatible with vehicle power supply or small generator power supply.

5. Water supply guarantee for small guesthouses/shops

Small guesthouses, convenience stores, barbershops, and other establishments with fewer water points but requiring stable water pressure can benefit from this pump, which can meet the simultaneous water demand of multiple taps. Made of hygienic and durable stainless steel, it meets the water standards for commercial establishments.

6. Auxiliary system for underfloor heating/solar hot water circulation

It assists in the water circulation of solar water heaters and household underfloor heating systems, improves the efficiency of hot water delivery, and avoids problems such as slow hot water supply and uneven temperature caused by pipe resistance.

I. Preparations before powering on

1. Check pipeline connections: Tighten inlet and outlet interfaces to ensure there are no loose connections or leaks; install a filter screen at the inlet to prevent impurities from entering the pump body.

2. Fill with medium: After first use or long-term shutdown, open the pump body's vent valve, fill with clean water, and purge internal air. Never start the pump with an empty tank.

3. Electrical checks: Verify that the power supply voltage matches the motor nameplate (110V/220V); ensure proper grounding to prevent leakage.

II. Startup and Operation

1. Manual Mode: Connect the power supply and press the start switch. The pump will begin working. Observe the pressure gauge. Once the pressure stabilizes, turn on the tap to use water normally.

2. Automatic Mode: Set the switch to the "Automatic" position. The pump starts and stops automatically via pressure sensing—it starts automatically when water is used and automatically stops when the pressure reaches the target level after water supply is interrupted, requiring no manual operation.

3. Operation Monitoring: Pay attention to the pump's noise and vibration. If there are no abnormal sounds, it can continue to operate. If a sudden drop in pressure or abnormal noise occurs, stop the machine immediately and check.

III. Shutdown and Maintenance

1. Normal shutdown: In manual mode, simply turn off the power; in automatic mode, no manual operation is required, and the pump will automatically shut down after water supply interruption.

2. Short-term shutdown: Close the inlet and outlet valves, keep water in the pump chamber to prevent the seals from drying out; no refilling is required before reuse.

3. Long-term shutdown: Drain the water from the pump chamber and wipe away any remaining moisture; turn off the power, protect it from dust and moisture, and store it in a dry, well-ventilated place.

4. Daily cleaning: Regularly disassemble and clean the inlet filter to prevent blockage by impurities; the stainless steel pump body surface can be wiped with a damp cloth, no special maintenance is required.

IV. Safety Precautions

1. Power must be disconnected before maintenance; operation while the power is on is prohibited.

2. Sewage and oily liquids must not be transported to avoid damaging the pump body.

3. In low-temperature winter conditions, the water in the pump chamber must be drained to prevent the pump body from freezing and cracking.

1. No water output/low water outputreason: Air leakage in the water inlet pipe, suction lift exceeding the rated value, impeller blockage.solve: Seal pipe joints, shorten suction pipe, and clean impeller debris.

2. Loud noise/intense vibrationreason: Unstable installation, worn bearings, or air inside the pump.solve: Install shock-absorbing pads for fixation, replace bearings, and open the vent valve to release air.

3. Frequent start-stopreason: Pressure switch malfunction, pipeline leaks, insufficient pressure in the pressure tanksolve: readjust the pressure switch, repair the pipeline leak, and replenish the pressure tank with gas.

4. Does not start when powered on.reason: Power failure, capacitor damage, overload protection trippingsolve:Check the power supply, replace the capacitor with one of the same specifications, and reset the overload protector.

5. Pump body rust/leakingreason: Material not 304 stainless steel, mechanical seal wearsolve: Replace the 304 pump body and replace the mechanical seal.

6. Motor overheats quickly/burns outreason: Dry running without water, unstable voltagesolve: Avoid no-load operation and install a voltage stabilizer.

7. Winter frost crackingreason: Residual water inside the pump freezessolve:After stopping use, drain the accumulated water and wrap the pump body with insulation cotton.
