Sewage Pump Solutions for Industrial and Municipal Projects
Built for solids handling and dependable operation, these pumps support municipal drainage, building services, environmental projects, chemical processes, and power facilities. We apply 10+ years of manufacturing experience and ISO9001-certified processes to deliver consistent quality. Engineering support, on-site commissioning, and responsive service help keep systems safe and efficient.
We supply submersible series (WQ/QW, JYWQ/JPWQ with agitators, YW vertical pit) and the inline GW pipeline model to suit different layouts and media. Tell us your duty point, media, and installation constraints for a matched configuration.
Types of Sewage Pumps We Supply
WQ/QW Submersible
Compact, IP68-rated units with vortex or channel impellers provide large free passage and stable non-clog performance for raw sewage, sludge, and stormwater. Options include stainless wetted parts, explosion-proof motors, and level-based control.
JYWQ/JPWQ Automatic Mixing Submersible
An integrated agitator stirs sediment to keep solids in suspension and reduce blockage risk. Ideal for high-solids wastewater and sumps prone to deposition.
GW Pipeline (Inline)
Inline non-clog models fit tight plant rooms and booster stations. The easy-access layout supports building drainage and process transfer without a wet well.

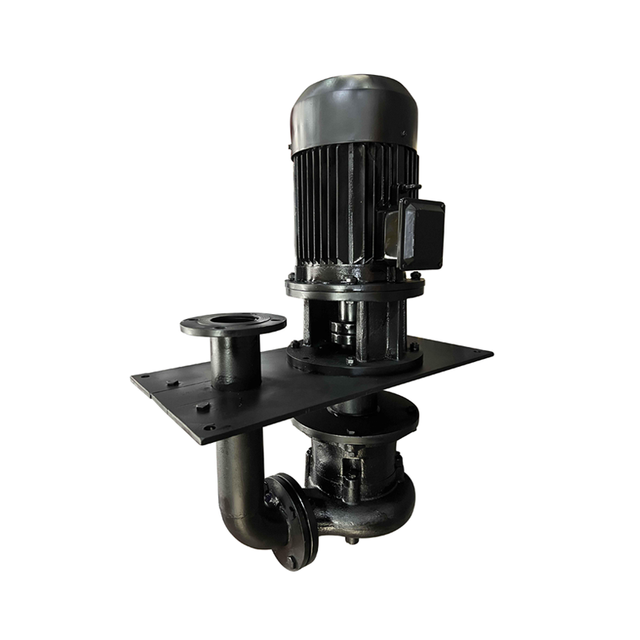

YW Submersible (Vertical Pit)
A rugged vertical arrangement for pits and tanks. It handles fibrous materials and suspended solids in municipal and industrial streams with straightforward handling.
How They Work and Key Components
Hydraulics for Solids Handling
Channel or vortex impellers create wide passages to pass solids and fibers while limiting clogging.
Motor and Seal System
High-efficiency IP68 submersible motors with double mechanical seals in an oil chamber extend service life. Temperature and leakage sensors can be integrated.
Materials and Coatings
Cast iron or stainless steel (304/316) are available for corrosion resistance. Wear-resistant coatings and hardened wear rings improve abrasion tolerance.
Control and Automation
Float switches, level transmitters, VFDs, and soft starters enable automatic operation and smooth starts. Alarms and setpoints can be tuned to process needs.
Selection and Sizing Guide
Flow, Head, and Solids Passage
Define normal/peak flow, total dynamic head, and required free passage based on solids size and fiber content. Confirm the duty across the operating range.
Installation Environment
Wet-pit, dry-pit, inline pipeline, or portable setups affect sealing, cooling, baseplate, and access for lifting and service.
Media Conditions and Materials
Temperature, pH, chlorides, abrasives, and viscosity guide material and seal choices for corrosive or aggressive streams.
Energy and Lifecycle Cost
Consider hydraulic and motor efficiency, control method, and service intervals to manage total cost over the pump’s life.
Installation, Commissioning, and Maintenance Support
Installation Best Practices
Use guide rails for submersibles, include check and isolation valves, route cables correctly, and verify submergence to avoid air entrainment.
Commissioning and Testing
Perform rotation checks, insulation and leak tests, and basic curve verification. Set control parameters and alarms to match site conditions.
Maintenance and Service Intervals
Inspect seals, bearings, impellers, and electrical components routinely. Condition monitoring can extend intervals and reduce downtime.
Industries and Applications
Municipal Wastewater and Stormwater
Lift stations, retention, and CSO systems need non-clog performance and dependable automation.
Buildings and Construction
Basement drainage, sump pits, and dewatering benefit from compact submersible models with level control.
Chemical and Process Industries
Select materials and seals to handle corrosive media and temperature; integrate with upstream chemical transfer where required.
Power and Utilities
Condenser pits and auxiliary wastewater require reliable solids handling with monitoring for stable plant operation.
Core Advantages and Customization
Engineering Support and Documentation
Receive pump curves, GA drawings, P&IDs, and installation guides with support from specification to start-up.
Quality and Reliability
Documented inspection and testing help ensure consistent performance and long service life.
Delivery and After-Sales
Timely delivery, spare parts availability, and technical assistance support planned operations.
Technical Specifications Snapshot
Performance Range (Typical)
Broad coverage from low to high flows and heads with large free passages; agitators available on select models. Consult for exact curves.
Materials and Seals
Cast iron or stainless steel 304/316, optional wear-resistant coatings; double mechanical seals in an oil chamber with optional hard faces.
Controls and Accessories
✅Float switches
✅Level transmitters
✅Control panels
✅Guide-rail systems
✅Non-return valves
✅Lifting chains
FAQs for Selection and Use
Sewage Pump vs. Effluent Pump — what’s the difference?
Effluent pumps move mostly liquid with small particles. Sewage models handle larger solids and fibers with non-clog hydraulics.
Can a submersible Sewage Pump run continuously?
Yes, if cooling and submergence are within ratings. Thermal and leakage protection helps safeguard the motor.
What materials should I choose for corrosive wastewater?
Use stainless steel (304/316) or coated options with compatible seal faces. Confirm pH, chlorides, and temperature.
How do I reduce clogging and maintenance?
Match impeller type and free passage to the media, consider an agitator for sediment, and apply appropriate screening and controls.
Category-Specific Highlights
Automatic-mixing submersibles (JYWQ/JPWQ) prevent sediment build-up, inline GW units save space in plant rooms, and vertical YW designs suit pit installations. Contact our Sewage Pump manufacturer team to discuss your duty point or request a quote.
