Basic functions of the product
It transports liquid containing solid particles (also called slurry) from one place to another. It can maintain high working efficiency and long service life in high-concentration solid particle media, so it is widely used in mining, metallurgy, electric power, chemical industry, environmental protection and other fields.
Basic information of the product
The slurry pump increases the energy of the solid-liquid mixed medium by using the centrifugal force (the rotation of the pump impeller) and converts the electrical energy into the kinetic energy and potential energy of the medium.Its working principle is to generate centrifugal force through the rotation of the impeller, suck the solid particles and liquid mixture into the pump body, and then accelerate it and transport it to the target location through the rotation of the impeller.
Usage Environment
Mining, power plants, dredging, metallurgy, chemicals, building materials, petroleum and other industries.
Product Advantages

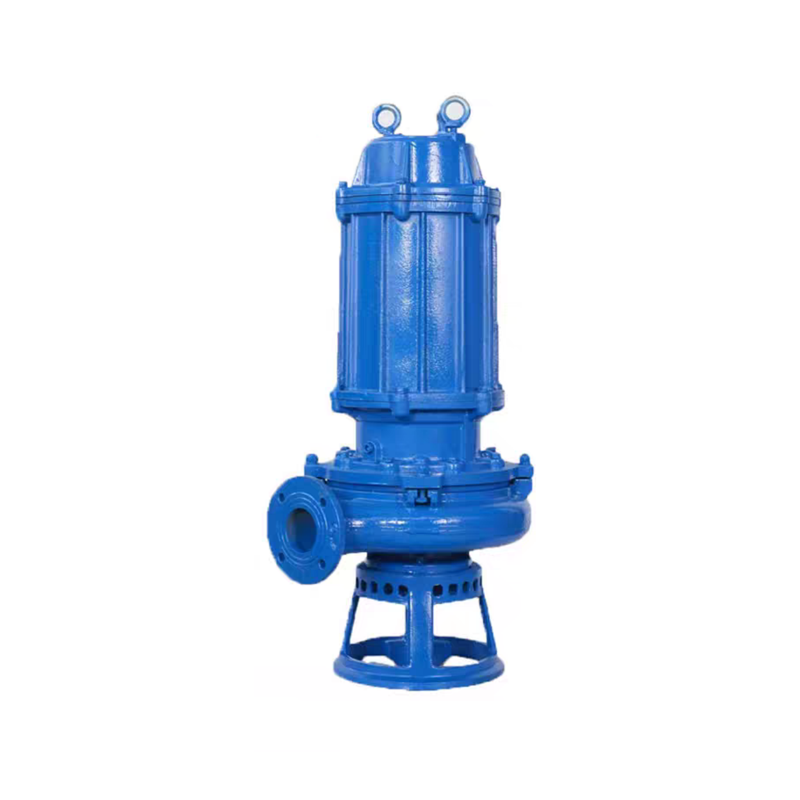

High Chrome Electric Submersible Slurry Pump with Agitator
High efficiency, reliability, durability, wear and corrosion resistance, easy maintenance, high efficiency and energy saving, long life, low maintenance cost and wide application fields
Product Features
High efficiency and energy saving ：The slurry pump adopts advanced fluid mechanics design, which makes the pump more efficient, reduces energy loss and achieves energy saving effectWear and corrosion resistant：Since the slurry contains a large amount of solid particles, the material of the slurry pump needs to be wear-resistant and corrosion-resistant. It is usually made of high-chromium cast iron, stainless steel and other materials to ensure the long-term stable operation of the pump.
Technical Parameters
| Pump Type | Slurry pump |
| Material | Gaoluo alloy |
| Drive type | electric |
| Maximum flow | 2339m3/h |
| Maximum lift | 129m |
| Installation Type | Horizontal |
| Maximum caliber | 350 |
| Maximum Power | 560 |
| Protection level | IP54 |
| Insulation class | F-Class |
| Standard voltage | 380V |
Product Usage
Mining industry：In the mining industry, slurry pumps are widely used in various process links of mineral processing plants. For example, in the iron ore beneficiation process, slurry pumps are used to mix ore and water into slurry, and then transport it to the flotation machine for separation. In gold mining, slurry pumps are used to transport slurry containing metal minerals.
Coal washing industry: In the coal washing process, slurry pumps are used to transport wastewater containing coal particles, and in the backfilling process of coal mine goaf, they are used to mix fly ash and water into slurry for backfilling.
Oil and gas industry: Slurry pumps are also widely used in the oil and gas industry. For example, during the drilling process, slurry pumps are used to deliver drilling fluid to the vicinity of the drill bit to flush the rock formation and carry away the cuttings; during the oil field development process, slurry pumps are used to deliver slurry containing reservoir materials to maintain oil well pressure to increase production.
Wastewater treatment industry: Slurry pumps are used to pump sludge and suspension containing solid particles in wastewater treatment. For example, in urban sewage treatment plants, slurry pumps are used to extract sludge containing solid particles from the bottom of sedimentation tanks or sedimentation tanks and then transport them to sludge treatment equipment for treatment.
Product Operation Guide
(1) Do not operate without water, do not adjust the suction port to reduce the displacement, and do not operate at too low a flow rate;
(2) Monitor the operation process and completely prevent leakage of the stuffing box. Use new stuffing when replacing the stuffing box;
(3) Ensure that the mechanical seal has sufficient water flow to flush it. Do not use excessive water flow on water-cooled bearings;
(4) Do not use too much lubricant;
(5) Perform inspections according to the recommended cycle; establish operation records, including operating hours, adjustment and replacement of packing, addition of lubricant and other maintenance measures and time; the suction and discharge pressure, flow, input power, temperature of the washing liquid and bearings, and vibration of the centrifugal pump should be measured and recorded regularly.
Frequently asked questions
Unable to start
Check the power supply voltage, tighten the power cord connector, inspect the motor winding, lubricate and maintain the motor bearings, check the control cabinet and protective devices, clean the impeller and transmission parts.
Unable to absorb water
Block the leaking part, check and adjust the direction, replace the damaged impeller, and clear the blockage in the suction pipe.
Excessive shaft power
Loosen the packing gland bolts appropriately, replace damaged bearings, adjust the belt tension, adjust the operating conditions and speed of the pump, and adjust the relative position of the motor shaft and the pump shaft.
Bearing overheating
Adjust the amount of grease, replace new grease, replace damaged bearings
