Introduce the basic functions of the product
Suction and discharge function: NL mud pump is mainly used to suck and discharge various fluid substances, such as sewage, mud, river water, feces, etc. It is suitable for the suction, delivery and sprinkling of river mud, feces, river water, slurry feed in rural areas, as well as drainage, drought resistance and other purposes.
Introduce the basic situation of the product

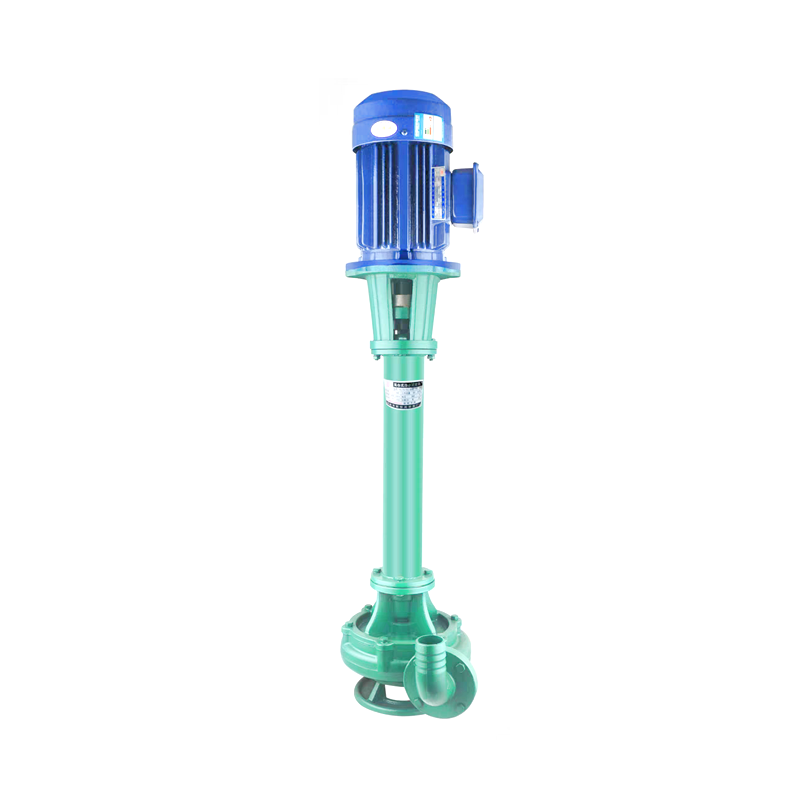

L-type submersible sewage slurry pump is used for suction, delivery and sprinkling of river mud, feces and river water. This pump can be used vertically or tilted, occupies a small area, the volute needs to be buried in the working medium, is easy to start, does not need water diversion, and the rotation direction should be clockwise when viewed from the tail of the motor.
Usage Environment
It can be used in municipal, infrastructure, chemical, printing and dyeing, medicine, shipbuilding, casting, food and other industries to suck thick liquid, dirty liquid, paste, quicksand and flowing sludge in urban rivers, etc. It can also be used to remove fluids containing mud and small gravel in coal mines. If it is combined with high pressure and water cork to form a hydraulic mechanical earthwork unit, it can also be used for land leveling, dredging of rivers and ponds, digging and conveying small water conservancy projects, as well as urban air defense projects and underground projects. It can be used for fish farming to clean ponds with water and increase oxygen in fish ponds
Product Advantages
How to Choose the Right Mud Pump? Flow Rate, Pressure & Material Guide
Unique performance in the discharge of wastewater containing solid particles
Product Features
Can be used vertically or tilted, small footprint, easy to start, no water diversion required, long service life, corrosion resistance, high efficiency, good passability, high performance, wear resistance, simple structure and wide range of applications
Technical Parameters
| Pump Type | NL150-16 |
| Material | cast iron |
| Drive type | electric |
| Maximum flow | 180m3/h |
| Maximum lift | 25m |
| Installation Type | Vertical |
| Maximum caliber | 150 |
| Maximum Power | 22 |
| Protection level | IP54 |
| Insulation class | F-Class |
| Standard voltage | 380V |
Product Usage
NL multi-purpose submersible pump is a single-stage single-suction centrifugal pump used in mines, papermaking, printing and dyeing, environmental protection, graphite, mica, gold, ceramics, oil refining, petroleum, chemical industry, farms, salt fields, iodine fields, dyeing, brewing, food, fertilizers, coking, concentrators, construction, marble plants, gold mines, mud, quicksand, mud ponds, sewage ponds, dirty liquids to deliver thick liquids, charging and suspended matter sewage operations, can also be used for mine drainage and fluids containing mud.
If it is combined with a high-pressure water pump and a water gun to form a hydraulic mechanized earthwork unit, it can be used for land leveling, dredging of rivers and ponds, excavation and transportation of small-scale water conservancy projects, as well as urban air defense projects and underground projects.
Fish farming is used to bring water to clean ponds and increase oxygen in fish ponds.
Product Operation Guide
Check all parts for defects. Apply a thin layer of butter on both sides of all paper pads and add two-thirds of butter to the bearings.
The skeleton oil seal must be filled with butter and placed in the pump seat, and then the bearing is installed.
Install the O-ring in the shaft sleeve and apply butter.
Put the paper pad on, install the bearing, sleeve, key, pump seat and impeller, tighten the impeller nut and rotate the impeller by hand until it rotates flexibly.
Place the paper pad on the pump housing, secure it with screws and install the filter. Then pull the impeller by hand and make it rotate flexibly.
Frequently asked questions
Does not start or does not operate normally
Check the blown fuse and wiring and replace them, increase the voltage or wait until the voltage is increased before using, adjust the axial clearance between the two half couplings to 0.5 mm, remove debris, reassemble the separation impeller and volute, install the flat key and nut, and replace the flat key.
Overload
Reassemble and remove foreign objects, correct parts and replace bearings, change the direction of motor rotation, and avoid using for a long time.
Insufficient flow
Remove the obstruction of the suction port and move the pump so that the volute is completely buried in the mud and sewage, check the pipeline and remove the obstruction, increase the motor speed, replace the impeller, reduce the head and shorten the conveying distance, change the motor rotation direction, check the cause of the leakage and replace the parts causing the leakage, remove the debris, dilute the medium and increase the supply volume
Noise and vibration
Friction between impeller and volute, bearing damage or lack of oil, misalignment between pump shaft and motor or shaft bending, loose nut, debris in volute, hard objects in working fluid, empty suction port, etc.
