Basic information of the product
The pump head can meet different needs by changing the number of pump stages (number of impellers), and has a wide range of applications. The shaft seal adopts a hard alloy mechanical seal, which is reliable, leak-free, and has low mechanical loss.
Usage Environment
Water plant filtration and transportation, water plant zoned water delivery, main pressure boosting, high-rise building pressure boosting process water system, cleaning system, high-pressure flushing system, fire protection system cooling and air conditioning system, boiler water supply and condensation system, machine tool supporting, acid and alkali farmland irrigation, sprinkler irrigation, drip irrigation
Product Advantages

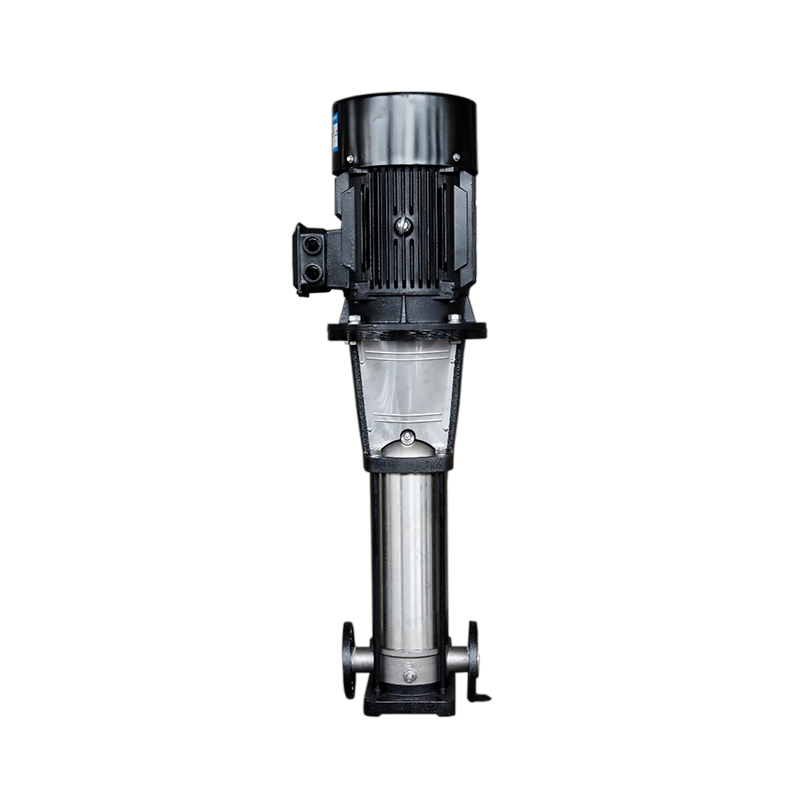

Energy - Saving Vertical Multistage Centrifugal Pump
Compact structure, high efficiency, energy saving, strong corrosion resistance, stable and reliable operation
Product Features
By optimizing hydraulic design and adopting energy-efficient motors, energy consumption and emissions are reduced, achieving green production
The pump body is made of stainless steel, which has good corrosion resistance and oxidation resistance and can adapt to various harsh working environments.
Technical Parameters
| Pump Type | Vertical |
| Material | 304/316 |
| Drive type | electric |
| Maximum flow | 240 |
| Maximum lift | 305 |
| Installation Type | Inlet and outlet pipe connections |
| Maximum caliber | 150 |
| Maximum Power | 110 |
| Protection level | IP55 |
| Insulation class | F-Class |
| Standard voltage | Single-phase voltage IX220-2301240V Three-phase voltage 3X200-2201346-380 3X220-2401380-415V3X220-255/380-440V |
Product Usage
Water supply: filtration and transportation in water plants, water supply in different areas of water plants, main pressure boosting, high-rise building pressure boosting
Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensation systems, machine tool accessories, acids and alkalis
Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool
Irrigation: farmland irrigation, sprinkler irrigation, drip irrigation.
Industrial boosting: process water system, cleaning system, high pressure washing system, fire fighting system.
Product Operation Guide
Vertical installation: It should be installed vertically on the ground. During installation, ensure that there is sufficient cold air entering the motor cooling fan. The arrow at the bottom of the pump indicates the flow direction through the pump. Drain pipe installation: In some installation situations, the drain pipe has been installed horizontally or tilted downward from the pump. The water in the pump will flow out. A section of broken pipe with a vacuum valve should be installed near the pump to prevent water loss in the pump.
Frequently asked questions
1.Water leakage from mechanical seal
Replace the sealing ring and check the installation. Strictly follow the instructions to check whether the tightening force is appropriate to avoid leakage caused by improper installation. Use high temperature and corrosion resistant rubber parts.
2. Reversal
Reverse the contact position to ensure the motor rotates forward
3. The motor is hot
Improper bearing operation can cause the motor to heat up. Damaged bearings or insufficient lubrication can increase friction inside the motor, causing heat. This problem can be solved by replacing high-quality bearings or checking the lubrication of the bearings regularly.
4. The water pump is noisy
1. Fill the pump completely before starting and remove air from the pipes and pump.
2. adjust the valve appropriately to stop the water pump from being overloaded.
3. add lubricating oil to the bearings in time.
4. improve the inhalation conditions and avoid the occurrence of cavitation.
