Introduce the basic functions of the product
1. Liquid transportation: It can transport clean water, hot water, seawater and corrosive chemical fluids such as acid and alkali, as well as liquids with viscosity similar to water. It is suitable for many fields such as petroleum, chemical industry, textile printing and dyeing, and pharmaceuticals.
2. High efficiency and energy saving: CFD computational fluid dynamics is used to optimize the flow channel design, with efficient hydraulic shape line, which can improve the efficiency of the pump and reduce energy consumption.
3. Smooth operation: The motor and the water pump are coaxially directly connected, with high concentricity, plus the good dynamic and static balance of the impeller, and the double throttle ring balancing method ensures good axial force balance, smooth operation, low vibration and low noise.
4. Reliable sealing: Mechanical seals made of stainless steel silicon carbide, fluororubber and other materials are used. The balanced type is resistant to high temperature and high pressure, has a long service life, does not leak, does not wear the shaft, and does not accumulate scale.
5. Convenient installation and maintenance: The shaft-coupled back-pull design has the same inlet and outlet diameters and is on a horizontal straight line. It can be repaired without disassembling the pipeline; vertical installation, compact structure, and small footprint; no independent lubrication and cooling water are required, and the stainless steel sleeve increases the shaft life and reduces the operation and maintenance costs
Usage Environment
1. Temperature environment Low temperature environment: IHG vertical stainless steel pumps can generally work at lower temperatures, and some models can adapt to environments as low as -20℃. In such low temperature environments, such as in outdoor water supply systems in winter in cold northern regions, as long as appropriate insulation measures are taken for the pump body, such as wrapping with insulation materials, the liquid in the pump can be prevented from freezing and the normal operation of the pump can be ensured. However, when the temperature is too low, special cold-resistant sealing materials and lubricants may be required to prevent the seals from hardening, brittle cracking, and poor bearing lubrication. High temperature environment: The pump also has certain applicability in high temperature environments. It can usually work at a maximum temperature of about 120℃. In certain high-temperature process links in the chemical and food industries, such as the high-temperature sterilization process in food processing, the pump can withstand the corresponding high temperature when conveying heated liquids. However, excessively high temperatures may affect the sealing performance and motor performance of the pump, so it is necessary to properly dissipate the heat of the motor and ensure that the sealing material can withstand high temperatures. 2. Chemical environment Acidic medium environment: Due to its stainless steel material, the IHG vertical stainless steel pump has good tolerance to acidic media. For example, in the electroplating industry, there will be contact with acidic electroplating liquids such as sulfuric acid and hydrochloric acid. This pump can resist the corrosion of these acidic substances and ensure the normal delivery of electroplating liquid. However, the degree of corrosion of the pump by acidic media of different concentrations is also different. For high-concentration strong acid environments, it may be necessary to select higher-grade stainless steel materials or perform special anti-corrosion treatment on the pump body. Alkaline medium environment: Similarly, it can also work in alkaline medium environments. For example, in the papermaking industry, it is necessary to transport papermaking liquid containing alkaline substances such as sodium hydroxide. IHG vertical stainless steel pumps can effectively resist the corrosion of alkaline liquid. However, similar to acidic media, for strong alkaline and high-concentration media, it is also necessary to consider the possible corrosion effects on the pump body caused by long-term use, and pay attention to the chemical effects that alkaline media may have on sealing materials. Chemical gas environment: In some places where chemical gases exist, such as chemical warehouses or certain chemical reaction workshops, acidic or alkaline gases may volatilize. If these gases come into contact with the pump body and react, the performance of the pump may be affected. Therefore, in this environment, it is necessary to consider protecting the pump, such as setting up ventilation devices to prevent chemical gases from accumulating around the pump body. 3. Space environment Indoor environment: IHG vertical stainless steel pumps are widely used in indoor environments. In indoor places such as factory workshops and basement pump rooms in buildings, the space is relatively closed and the environmental conditions are relatively stable. The vertical structure of this pump saves space and is easy to install and arrange indoors. For example, in the basement water supply system of a hotel, it can be compactly installed in the equipment room, and because of its relatively low noise during operation, it will not cause too much noise interference to the indoor environment. Outdoor environment: The pump can also play a role in outdoor environments. For example, it is used in outdoor projects such as municipal sewage treatment plants and agricultural irrigation systems. However, more factors need to be considered in outdoor environments, such as waterproofing, sun protection, and wind and sand protection. For waterproofing, it is necessary to ensure that the motor and electrical control parts have good waterproof performance to prevent rainwater from entering and causing short circuits; for sun protection, long-term direct sunlight may cause the pump body to overheat, and sunshade measures need to be taken; in areas with strong winds and sand, it is also necessary to prevent sand and dust from entering the pump body and affecting the normal operation of the pump. 4. Geographical environment (altitude, etc.) Different altitudes: IHG vertical stainless steel pumps can be used in areas with different altitudes. However, as the altitude increases, the atmospheric pressure will decrease, which will have a certain impact on the performance of the pump. For example, at high altitudes, the boiling point of the liquid will decrease, and the pump may experience cavitation when conveying certain volatile liquids. Generally speaking, in areas with an altitude of less than 1,000 meters, the performance of the pump is basically unaffected; when the altitude exceeds 1,000 meters, it is necessary to make appropriate adjustments to the pump selection and operating parameters according to the actual situation, such as lowering the installation height of the pump to avoid cavitation.
Product Advantages

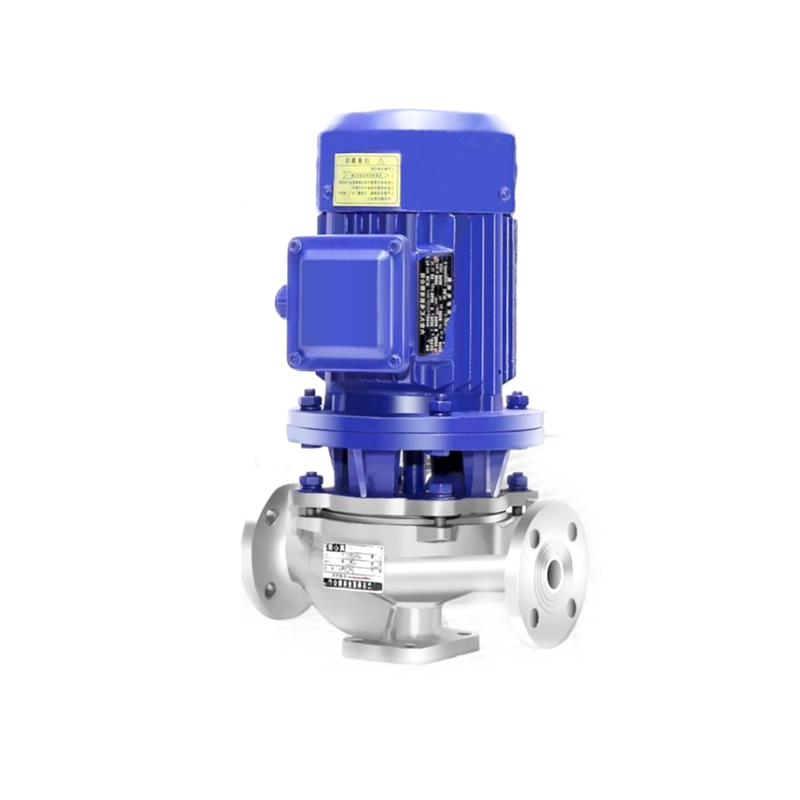

Corrosion-Resistant IHG Vertical Pump | HVAC, Water Treatment, Marine Applications
1. High efficiency and energy saving: CFD computational fluid dynamics is used to optimize the flow channel, the hydraulic line is efficient, and the pump efficiency is improved.
2. Smooth and reliable operation: the motor and the water pump are directly connected on the same axis, with high concentricity; the impeller has excellent dynamic and static balance, and the double throttling ring balances the axial force, reduces motor failure, and runs safely and stably.
3. Convenient installation: the inlet and outlet diameters are the same and in the same straight line, and can be installed at any position in the pipeline like a valve; the vertical structure occupies a small area, the motor plus the rain cover can be used outdoors, and there are also feet to ensure stable installation.
4. Simple maintenance: the shaft coupling back-pull design does not require the removal of the pipeline. Only the pump cover nut can be removed to remove the motor and transmission components for maintenance.
5. Good sealing: stainless steel silicon carbide, fluororubber and other materials are used for mechanical seals, balanced design, high temperature and high pressure resistance, long life, no leakage, no shaft damage, and no scale accumulation.
6. Durable material: the main body is made of stainless steel, and the shaft seal is inlaid with a stainless steel sleeve for corrosion protection; the flow-through parts are precision cast with silicon melt, and the pickling treatment keeps the medium pure.
7. Widely used: can transport clean water, sewage, corrosive chemical fluids, working temperature -20 ~ 120 ℃, special materials can reach 180 ℃.
Technical Parameters
| Pump Type | IHG vertical stainless steel pump |
| Material | 304/316 |
| Drive type | electric |
| Maximum flow | 1500 cubic meters |
| Maximum lift | 120m |
| Installation Type | Vertical |
| Maximum caliber | DN500 |
| Maximum Power | 160KW |
| Protection level | IP54 |
| Insulation class | F |
| Standard voltage | Single-phase voltage IX220-2301240V Three-phase voltage 3X200-2201346-380 3X220-2401380-415V 3X220-255/380-440V |
Product Usage
1. Municipal Engineering Field Municipal Water Supply: In the city's water supply system, IHG vertical stainless steel pump plays a key role. It can take water from water sources (such as reservoirs, rivers, etc.) and then transport the water to the water plant for treatment. The treated water is transported to various areas of the city, including residential areas, commercial areas, schools, hospitals, etc. through a pipeline network using the pump. Municipal Drainage: Used in urban sewage discharge systems, it can collect domestic sewage, rainwater, etc. from various drainage outlets in the city and transport them to sewage treatment plants. In rainy weather, its strong drainage capacity can effectively prevent urban waterlogging.
2. Energy Industry Application Petrochemical: In the process of petroleum refining and chemical production, various complex liquid media need to be transported. IHG vertical stainless steel pumps can be used to transport crude oil, refined oil, chemical raw materials (such as methanol, ethanol, etc.) and various chemical products. Power Industry: In the circulating water system of thermal power plants, IHG vertical stainless steel pumps are used to transport cooling water. Cooling water is essential for the cooling of generator sets. It can take away the heat generated during the operation of the generator and ensure the normal working temperature of the generator.
3. Applications in Mining and Metallurgical Industry Mining: In the drainage system of the mine, IHG vertical stainless steel pump can discharge the groundwater in the mine to ensure the safety of the underground working environment. In some underground metal mines or coal mines, the timely discharge of groundwater is crucial to the normal operation of mining equipment and the life safety of miners. Metallurgical Industry: In metallurgical plants, it is used to transport various metallurgical solutions, such as electrolytes, electroplating solutions, and molten liquids in the process of non-ferrous metal smelting. Its high temperature resistance and corrosion resistance can meet the demanding requirements of the metallurgical industry.
4. Applications in Transportation Industry Shipbuilding Industry: On ships, IHG vertical stainless steel pumps are used to transport various liquids, such as seawater, fresh water, fuel oil, lubricating oil, etc. In ocean-going ships, it can introduce seawater into the ship's cooling system for cooling equipment such as ship engines. Automobile Manufacturing and Maintenance: In automobile manufacturing plants, it is used to transport various liquids in the automobile production process, such as paint in the painting shop and cleaning fluid in the cleaning shop. In automobile repair shops, it can be used to extract and transport automobile engine oil, coolant, etc.
Product Operation Guide
1. Installation preparation Check whether the pump model and parameters meet the requirements, and check whether the appearance and parts are damaged. Clean the pump body and pipeline to ensure that there are no debris.
2. Installation steps Install the pump on a horizontal and solid foundation and fix it. Connect the inlet and outlet pipes correctly, pay attention to the seal, and do not let the weight of the pipes press on the pump. Install the regulating valve and pressure gauge on the inlet and outlet pipes.
3. Check before starting Check the direction of the motor (the pump should be clockwise when viewed from the top of the motor). Fill the liquid and exhaust the air. Check whether the mechanical seals, bearings and other parts are normal, and manually turn the pump shaft to see if it is flexible.
4. Start operation Close the outlet valve first, then turn on the power to start. After the pump reaches the rated speed, slowly open the outlet valve to adjust the flow and pressure.
5. During operation, pay attention to observe the flow, head and other parameters, and check the mechanical seals and bearings. Prevent vacuum and cavitation.
6. Shutdown steps Close the outlet valve first, then cut off the power. If conveying special liquids, empty the liquid in the pump after shutdown. Regular maintenance.
Frequently asked questions
1. The water pump does not produce water: the inlet and outlet valves are not open, the pipeline or impeller is blocked, the motor is reversed or lacks a phase, the suction pipe is leaking, the pump is not filled with liquid, the inlet water supply is insufficient, the suction head is too high, the bottom valve is leaking, the pipeline resistance is too large, or the pump is improperly selected.
2. Insufficient flow: In addition to the above reasons, it may also be partially blocked in the pipeline or impeller, scale deposition, insufficient valve opening, low voltage, or impeller wear.
3. Excessive power: exceeding the rated flow, the suction head is too high, or the pump bearing is worn.
4. Noise and vibration: the pipeline support is unstable or the bearing is damaged.
5. Motor heating: excessive flow, overload operation, or motor bearing damage.
6. Water pump leakage: mechanical seal wear, sand holes or cracks in the pump body, uneven sealing surface, or loose mounting bolts.
