| Quantity: | |
|---|---|
Basic functions of the product
The basic functions mainly include conveying various viscous or particulate media, and it has the characteristics of self-priming, high head, wear resistance and non-blocking. This pump relies on two synchronously reversed rotors to generate suction during the rotation process, thereby sucking in and conveying materials.
Basic information of the product

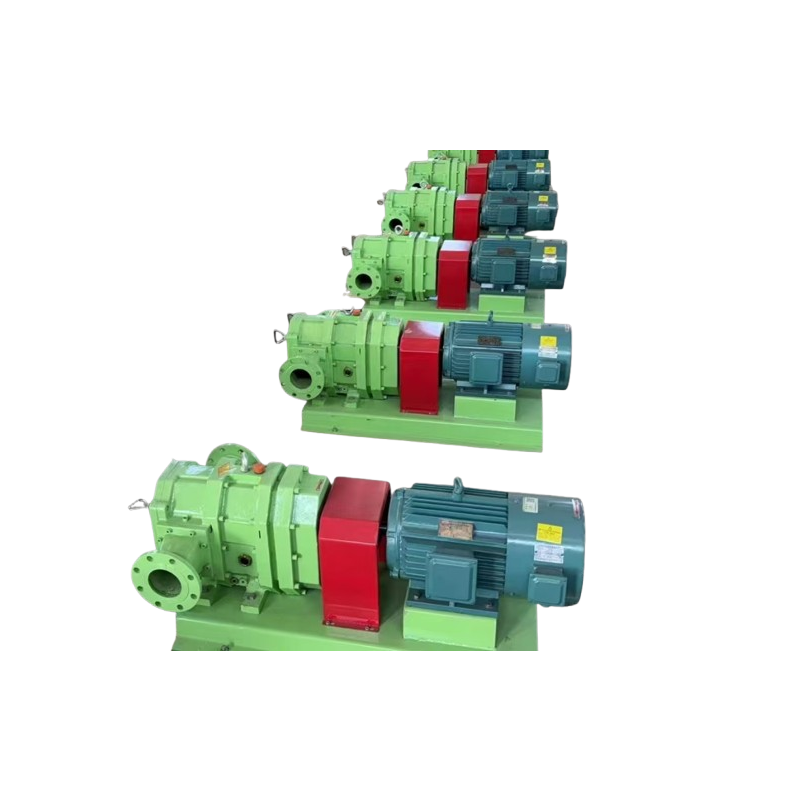

The neutral cam rotor pump is a positive displacement pump with the advantages of small size, light weight, high speed, stable operation, large flow, no pulsation, and strong self-priming ability.Its main components include pump body, bidirectional rotating cam rotor, positioning shaft, coupling and motor. The pump body is usually cast or welded from sheet metal, with two rotors inside. Each rotor consists of a central shaft and a cam. The cam profile fits closely with the inner profile of the pump body. The two rotors rotate in opposite directions to form a cavity whose volume changes periodically as the rotor rotates, completing the process of sucking in and discharging the medium.
Usage Environment
Petrochemical industry: In refineries, chemical plants and other places, it is used to transport crude oil, heavy oil, diesel, gasoline, various chemical raw materials and finished products. These environments usually have flammable, explosive, toxic and harmful gases, and high explosion-proof and leakage-proof performance requirements are placed on the pump. -Pharmaceutical industry: In the production line of pharmaceutical factories, it is used to transport various liquid medicines, pharmaceuticals, biological products, etc. This environment has extremely high requirements for the hygiene and cleanliness of the pump material, and must comply with the Good Manufacturing Practice (GMP) for pharmaceutical production. -Food and beverage processing: such as the transportation of milk, beer, juice, syrup, edible oil, etc. The pump body and parts in contact with the medium are required to be made of food-grade stainless steel or materials that meet hygiene standards, and are easy to clean and disinfect. Sewage treatment: In urban sewage treatment plants and industrial wastewater treatment facilities, it is used to transport sewage and sludge. Sewage may contain a large amount of solid particles, fibers, corrosive substances, etc., and the pump needs to have good wear resistance, corrosion resistance and anti-clogging ability. Treatment of landfill leachate: The composition of landfill leachate is complex, containing high concentrations of organic matter, heavy metal ions and ammonia nitrogen, etc. It is highly corrosive and polluting, and has strict requirements on the corrosion resistance and sealing performance of the pump. Water supply for high-rise buildings: It is used to provide stable water supply to high-rise buildings. The pump needs to have a high head and stable flow output, and at the same time meet the requirements of low noise operation to avoid interference with residents' lives. Municipal drainage: In urban drainage systems, it is used to pump rainwater, sewage, etc., and the pump needs to have good self-priming ability and anti-blocking ability, and can operate reliably under harsh working conditions. Ship transportation: It is used to transport fuel, lubricating oil, seawater, ballast water, etc. on ships. The pump needs to have good corrosion resistance and shock resistance, and can work stably in the environment of ship swaying and vibration. Mining: In the mineral processing plant, tailings treatment and other links of the mine, it is used to transport slurry, tailings and other media containing a large number of solid particles, and the wear resistance and impact resistance of the pump are required to be high.
Product Advantages
How Rotary Lobe Pumps Outperform Traditional Pumps in Viscous Fluid Transfer
Wear-resistant, corrosion-resistant, strong self-priming, high lift force, high efficiency, stable operation, not easy to block, easy maintenance, small footprint, integrated control system
Product Features
1. Safety and sanitation: All parts of this pump that come into contact with the conveyed material are made of high-quality stainless steel, and the seals are made of non-toxic rubber. The reliable rust resistance and non-toxic sealing ensure safety and sanitation; the streamlined structure of the rotor and the basically no dead points and non-metallic parts in the rotor chamber avoid contamination of the conveyed material; 2. Beautiful appearance: The surface is mirror-polished for easy cleaning, clean and beautiful; 3. Advanced internal structure: The impeller of the pump is separated from the transmission gear, and a certain gap is guaranteed between the parts in the pump chamber, so they do not contact each other, so there is no wear, low noise, good reliability and long service life; 4. Conveying high-viscosity and non-shearing materials: In addition to conveying general thin materials, this pump is also particularly suitable for conveying high-viscosity, concentrated and any particle-containing media (materials). The materials conveyed by it maintain their original quality unchanged and do not undergo any physical and chemical reactions. 5. Good sealing: This pump adopts external dynamic and static ring mechanical seals, which are resistant to high pressure, not easy to wear, and no leakage; 6. High pressure: This pump has a small volume, large flow, high head pressure, and is suitable for long-distance and high-resistance quantitative transportation.
Technical Parameters
| Pump Type | Rotary lobe pump |
| Material | cast iron |
| Drive type | Motor, pneumatic, hydraulic |
| Maximum flow | 800m3/h |
| Maximum lift | 180m |
| Maximum caliber | 400mm |
| Maximum Power | 18.5kw |
| Protection level | IP55.IP66 |
| Insulation class | F-Class |
| Standard voltage | Standard voltage is 380V |
Product Usage
Crude oil transportation: used to transport the extracted crude oil from the wellhead to the gathering station or refinery. Its good self-priming ability and adaptability to high-viscosity media can ensure the stable transportation of crude oil. Chemical raw material transportation: in chemical production, it is used to transport various high-viscosity and corrosive chemical raw materials, such as concentrated sulfuric acid, concentrated nitric acid, polymer solution, etc. Beverage production: in the beverage production line, it is used to transport various beverage raw materials and finished products such as juice, syrup, beer, milk, etc. Its gentle transportation method can avoid shearing and stirring of beverages, ensuring the taste and quality of beverages. Food processing: in the food processing process, it is used to transport viscous materials such as cream, chocolate paste, jam, minced meat, etc., while meeting food hygiene requirements. Pharmaceutical production: used to transport various pharmaceutical raw materials, intermediates and finished products, such as ointments, syrups, injections, etc. Its good sealing can prevent drug leakage and contamination, ensuring drug quality and production safety. Sewage transportation: in sewage treatment plants, it is used to transport sewage, sludge and other media. It has strong anti-blocking performance and can effectively transport sewage containing solid particles and fibers, and is not prone to blockage failure. Chemical dosing: In the sewage treatment process, it is used to add various flocculants, disinfectants and other chemicals to ensure accurate dosing and uniform mixing of the chemicals. Pulp transportation: It is used to transport papermaking raw materials such as wood pulp and straw pulp to the headbox of the papermaking machine. Its good adaptability to high-concentration pulp can ensure a stable supply of pulp. Paint transportation: In the paper coating process, it is used to transport coatings such as pigments and adhesives to ensure uniform coating of the coating and improve the quality of the paper. Fuel oil transportation: It is used to transport heavy oil, diesel and other fuels on ships. It has strong self-priming ability and can be flexibly arranged in the ship's fuel system to ensure a reliable supply of fuel. Ballast water transportation: It is used for the transportation and discharge of ship ballast water. Its good sealing can prevent ballast water leakage and protect the environment.
Product Operation Guide
Before starting the pump, make sure that the pump drive shaft and the motor shaft are coaxial, otherwise it will cause damage to the machine parts.
Try to avoid dry running to prevent damage to the seal contact surface. If dry running is performed for a short period of time, a little clean water can be applied around the sealing surface of the mechanical seal.
This product is a positive displacement pump with a fixed displacement per revolution. If the discharge pipeline is blocked or the previous process stops working while the pump is still running, a very high pressure will be generated, causing accidents such as pipeline rupture, seal leakage or machine damage. If the load is overloaded, the pump's transmission parts (drive shaft, coupling, rotor, etc.) will also be damaged.
When the upper and lower pipelines are closed, the pump must not be started, otherwise the pump will be damaged!
Before starting, the pump inlet and outlet and the upper and lower pipelines must be fully opened.
Before starting, check whether the pump and motor are in the correct direction (jog check).
For this sanitary pump, the most important thing is to clean it before operation.
Frequently asked questions
Unable to start
Check the power supply to ensure that the joints are firmly connected, the switches are in tight contact, the fuses are not blown, and the three-phase power supply is normal; check and adjust the tightness of the packing, dredge the water diversion trough, disassemble the pump body to remove debris, and remove rust or replace the pump shaft, bearings, and leakage reduction rings.
Insufficient flow or unstable pressure
Reinstall the imported seals to ensure good sealing; restore the rated speed, remove the belt oil and dirt and adjust the belt tightness; shorten the pipeline or change the pipeline curvature to reduce resistance.
There is air in the pump or air is accumulated in the water inlet pipe
First pressurize the water, then fill the pump body with water and start it; check whether the check valve is tight, whether there is any leakage in the pipes and joints, apply lubricating oil or paint to the joints and tighten the screws; check the oil seal ring of the water pump shaft. If it is severely worn, replace it with a new one.
Loud vibration and noise
Increase the inlet diameter to reduce the inlet resistance, remove the debris in the pump and check whether the pump rotates normally; reduce the vacuum degree
