| Quantity: | |
|---|---|
| Introduce the basic functions of the product |
1. Clog-free sewage discharge: Large-channel impeller for efficient conveying of sewage and wastewater containing particles and fibers. 2. Direct pipeline transport: Flange connection allows for direct series piping, eliminating the need for additional infrastructure. 3. High efficiency and stable operation: Optimized hydraulic design ensures stable flow and head, making it suitable for continuous operation. 4. Multi-scenario adaptation: Meets the different sewage discharge needs of municipal, construction, and industrial sectors. |
| Usage Environment |
1. Media compatibility: It can transport sewage and wastewater containing solid particles and fibrous impurities. 2. Installation conditions: Horizontal/vertical pipe flange direct connection, with reserved maintenance space. 3. Operating Conditions: Medium temperature ≤80℃, avoid prolonged idling and dry running. 4. Environmental requirements: Place in a well-ventilated indoor/outdoor location, protected from heavy rain and direct sunlight, and compatible with three-phase power supply. |
| Product Advantages |
1. No blockage: Large-channel impeller easily transports wastewater containing particles and fibers. 2. Easy to install: Flange direct connection to pipes requires no additional foundation and saves space. 3. High efficiency: Optimized hydraulic structure, stable flow and head, low energy consumption 4. Strong compatibility: It can be used both indoors and outdoors, meeting the sewage discharge needs of various scenarios such as municipal and industrial applications. 5. Easy to maintain: Compact structure, easy maintenance, and reduced operation and maintenance costs |
| Technical parameters |

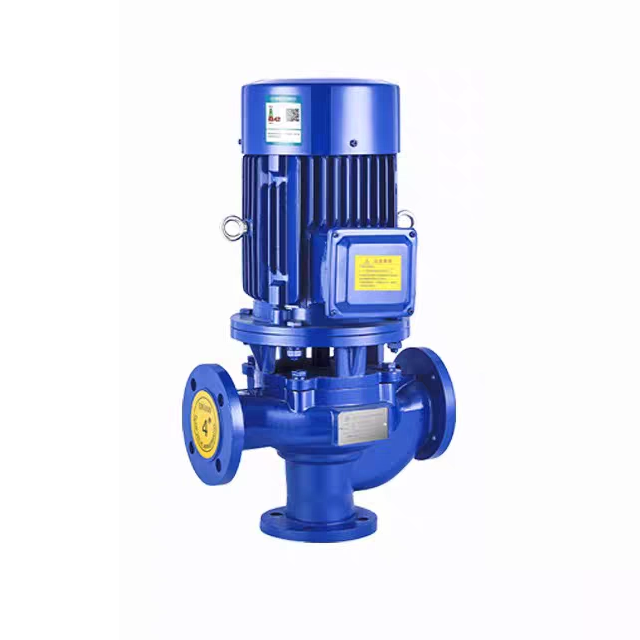

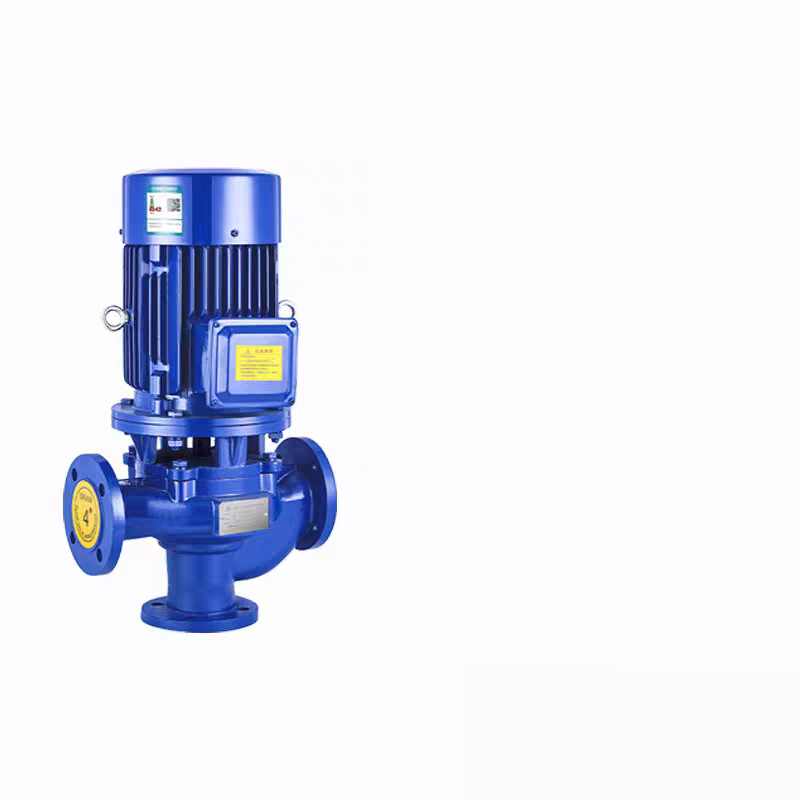

| type | GW inline sewage pump |
| Material | Cast iron / Stainless steel (304/316) |
| Driver type | direct drive of motor |
| Installation type | Vertical direct connection installation |
| Maximum caliber | DN200 |
| Maximum flow | 300m³/h |
| Maximum head | 50m |
| Maximum power | 37kW |
| Protection level | IP55(Outdoor model available) IP65) |
| Insulation class | F-level |
| Standard voltage | 380V three-phase 50Hz (440V/60Hz customizable) |
| Product Uses |
1. Municipal Engineering: Urban sewage pipeline transportation and sewage treatment plant water circulation 2. Construction industry: Basement drainage, construction site mud wastewater discharge 3. Industrial sector: Transportation of factory production wastewater and liquids containing particulate impurities 4. Agricultural irrigation: Farmland drainage and livestock farm wastewater discharge |
| Product Operation Guide |
1. Before powering on: Check the flange connection sealing and valve opening and closing status to confirm that the medium is sufficient and free of impurities. 2. Startup: Fully open the inlet valve, power on the machine, and then slowly adjust the outlet valve to the rated operating condition. 3. Running: Monitor current, pressure, and vibration; idling is strictly prohibited; and debris should be removed from the impeller promptly. 4. Shutdown: First close the outlet valve and disconnect the power supply, then close the inlet valve; if the pump is to be shut down for an extended period, the liquid inside the pump must be drained. |
| Frequently Asked Questions |
1. Insufficient flow rate and head: Impeller blockage, inlet valve not fully open, or excessive impurities in the medium. 2. Pump body vibration and abnormal noise: Loose fasteners, unbalanced impeller, and misaligned pipe flange connections. 3. Motor overload tripping: The outlet valve opening is too large, the medium viscosity exceeds the standard, and the bearing is worn and stuck. 4. Leakage sealing: Aging of sealing rings, damage to flange gaskets, and uneven tightening of bolts. 5. Unable to start: Power supply phase loss, wiring error, impeller jammed by foreign object. |
