| Quantity: | |
|---|---|
Introduce the basic functions of the product.
1. Sewage/rainwater collection and temporary storage
Relying on high-strength shaft, centralized collection and temporary storage of municipal sewage, road rainwater and industrial wastewater can be realized to avoid sewage overflow and rainwater waterlogging.
2. Large-flow supercharged lifting
Through the built-in joint operation of several submersible pumps, it provides strong power to boost the collected water to the municipal drainage pipe network or sewage treatment plant, breaking through the height limit of terrain and pipe network.
3. Impurity filtration and interception
Equipped with automatic grille (basket-lifting grille/crushing grille) to effectively intercept or crush solid impurities (leaves, garbage, fibers, sand and gravel) in the water body and prevent the pump body and pipeline from being blocked.
4. Intelligent automatic control
Equipped with liquid level sensor and PLC control system, the automatic start-stop and alternate operation of the pump group can be realized without manual attendance, and the operation state can be automatically adjusted according to the water level.
5. Safety protection and early warning
It has the functions of overload protection, dry burning protection, anti-overflow protection and fault alarm. When the equipment is abnormal, it will automatically stop and trigger an audible and visual alarm to ensure the safe and stable operation of the equipment. "
operational environment
1. Scenario: Municipal Rain and Sewage/Industrial Park/Rural Governance/Transportation Hub
2. Installation: above ground/underground.
3. Temperature: -20℃ ~ +50℃
4. Medium: rain sewage/light industrial wastewater
5. Environment: altitude ≤2000m, humidity ≤95% "
Product advantage
1. Integrated prefabrication and convenient installation.

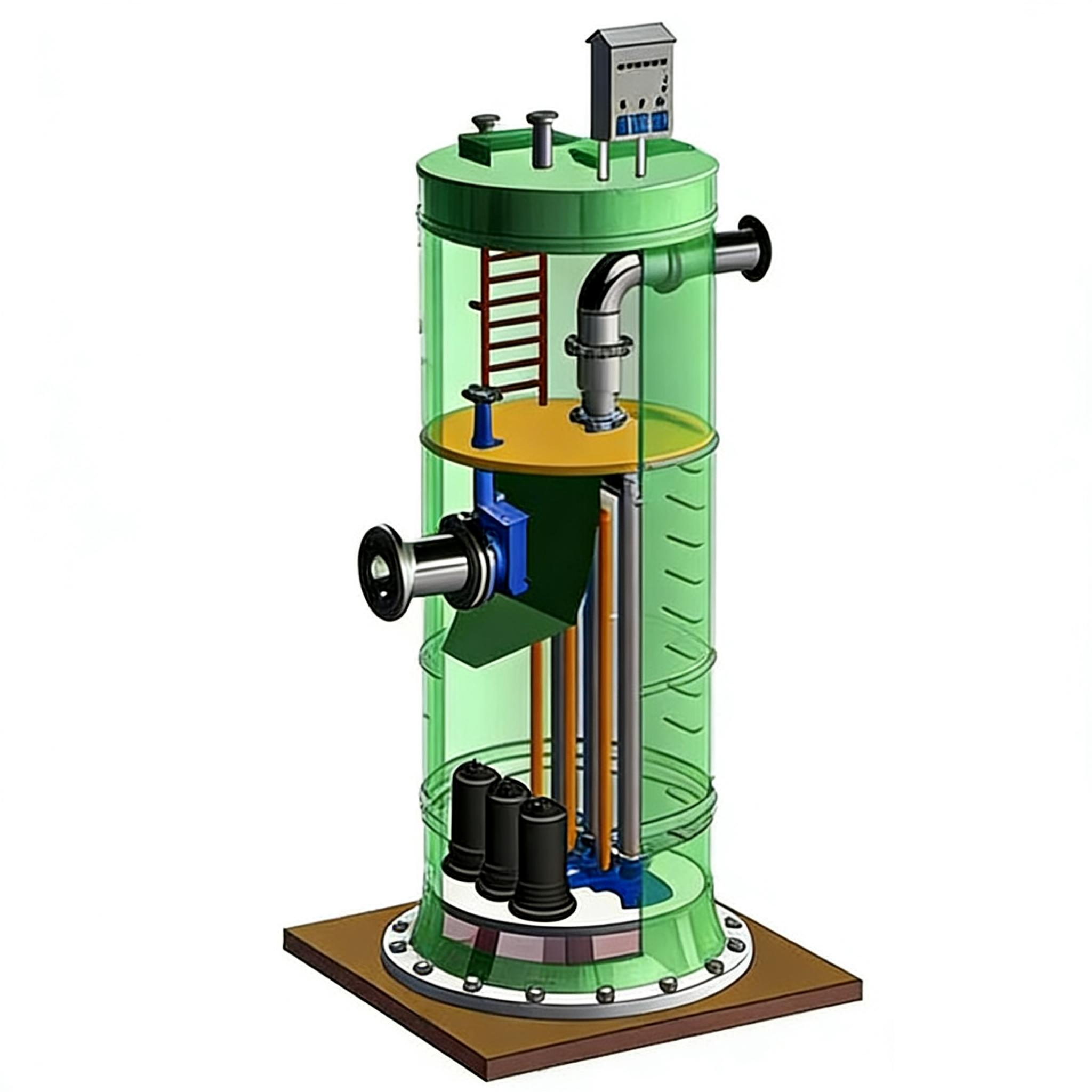

The factory is prefabricated in an integrated way, with a complete set of components such as shaft, pump set, control system and grille. Only foundation pit excavation and pipeline connection are needed on site, and the installation period is shortened by 80% compared with the traditional pumping station, which greatly reduces the construction cost.
2.GRP material, long corrosion resistance.
The wellbore is made of high-strength GRP/FRP glass fiber reinforced plastic, which is corrosion-resistant, anti-aging, light in weight, resistant to acid and alkali wastewater erosion, and has a service life of more than 30 years, far exceeding the traditional concrete pumping station.
3. Intelligent control, unattended
Equipped with PLC intelligent control system and liquid level sensor, it can realize automatic start and stop of pump group, alternate operation and fault alarm without manual duty; Support remote monitoring module, which can realize cloud management and reduce operation and maintenance costs.
4. Small floor space and strong adaptability.
The vertical integrated design is adopted, which occupies only 1/5 of the traditional concrete pumping station, and can be flexibly installed in narrow spaces such as municipal roads, industrial parks and rural areas, with little impact on the surrounding environment.
5. Stable operation and convenient maintenance.
Built-in high-efficiency submersible pump and automatic grille, anti-clogging, low noise; Equipped with special maintenance platform and lifting lug, only pump set parts need to be replaced in the later maintenance, and the maintenance cost is low without large-scale dismantling. "
technical parameter
| 类型 | 一体化预制泵站 |
| 材料 | 铸铁、不锈钢、工程塑料 |
| 驱动类型 | 电动驱动 |
| 安装类型 | 地上式安装 / 地下预埋式安装 / 半地埋式安装 |
| 最大口径 | DN800mm |
| 最大流量 | 1000 m³/h |
| 最大扬程 | 50 m |
| 最大功率 | 75 kW |
| 防护等级 | IP54/IP65 |
| 绝缘等级 | F 级 |
| 标准电压 | 380V/50Hz、220V/50Hz 220V/60Hz、440V/60Hz |
product usage
| 1.Municipal sewage/rainwater discharge 2.Industrial park wastewater 3.Rural sewage treatment 4.Transportation hub drainage 5.Sponge city projects |
Product operation guide
| 1.Commissioning: Pre-adjusted in factory, only pipe and power connection on site. 2.Start-up: Connect power, set liquid level parameters, system runs automatically. 3.Monitoring: Check control cabinet indicators, no manual attendance needed. 4.Maintenance: Clean grille regularly, inspect pumps and meters. 5.Shutdown: Normal shutdown: cut off power; Emergency: press emergency stop button. |
FREQUENTLY ASKED QUESTIONS
| 1.Failure to start, no display on control cabinet 2.Pump running, no drainage lifting 3.Frequent start-stop, unstable operation 4.Loud noise and obvious vibration 5.Wellbore leakage, odor overflow 6.Motor overload, frequent protection shutdown |
