| Quantity: | |
|---|---|
| Introduce the basic functions of the product |
1.igh-viscosity media transportation It enables stable and continuous conveying of high-concentration, high-viscosity materials such as thick slurry, mineral slurry, mortar, and viscous chemical slurry, solving the problem that ordinary pumps cannot adapt to viscous media. 2. Strong suction and low failure rate conveying It has a strong self-priming capability, which can handle working conditions where the material contains a small amount of particles and reduce the risk of blockage; at the same time, it can ensure stable pressure of material conveying within a certain head range. 3. Multi-scenario adaptable delivery It supports the working conditions of multiple industries such as chemical, construction, and mining, and can switch between explosion-proof, food-grade and other configurations according to the scenario to meet the compliance and usage requirements of different fields. 4. Convenient maintenance and energy-saving operation The structure is compact, easy to disassemble and repair, reducing later maintenance costs; it has high operating efficiency and can reduce energy consumption during continuous conveying operations. |
| Usage Environment |
1. Working Scenario: Suitable for indoor and outdoor industrial sites ranging from normal to medium-high temperatures, including chemical workshops, construction sites, and mining yards, where dust and humidity are prevalent. 2. Media Requirements: It can transport high-viscosity, high-concentration slurries containing a small amount of particles; with the selection of special materials, it can withstand acid and alkali media or meet food-grade requirements. 3. Compatibility:It can be combined with storage tanks, conveying pipelines and other equipment, and supports fixed or mobile installation. |
| Product Advantages |
1. Highly adaptable to viscous media: It can stably convey high-concentration slurries with a viscosity ≤10000PaS, and is compatible with media containing a small amount of solid particles or lumps. There is no overflow, pulsation or shearing of materials, thus avoiding conveying interruptions. 2. Stable operation and high efficiency: It has outstanding self-priming capability and can directly draw water without a foot valve; the discharge pressure is independent of the speed and can maintain high pressure output even at low flow rates; the flow rate can be flexibly adjusted through the speed change mechanism. 3. Wear-resistant, corrosion-resistant, and durable: Components in contact with materials can be made of stainless steel, wear-resistant rubber, etc., which can withstand acid and alkali media and particle wear, extend service life, and adapt to complex working conditions in many industries. 4. Easier to use and maintain: It has a simple and compact structure, is easy to disassemble and maintain, and allows for quick replacement of easily damaged parts; it has low vibration and low noise during operation, supports forward and reverse switching, and can meet the needs of pipeline reverse flushing. 5. Flexible scene adaptability:It supports customized configurations such as explosion-proof and food-grade, and offers various transmission methods, making it suitable for multiple industries such as chemical, food, mining, and construction. Both bulk supply and personalized needs can be met. |
| Technical parameters |

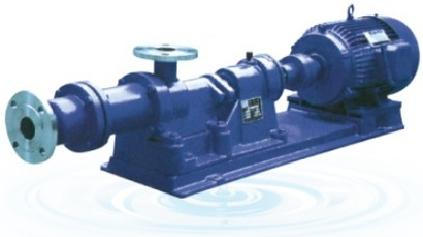

| type | I-1B Thick Slurry Pump |
| Material | Cast iron stainless steel 304/316 |
| Driver type | electric |
| Installation type | Horizontal |
| Maximum caliber | DN100 (4 inches) |
| Maximum flow | 60 m³/h |
| Maximum head | 120 m |
| Maximum power | 37KW |
| Protection level | IP54 |
| Insulation class | F-level |
| Standard voltage | 380V/50Hz, 200V/60Hz, 440V/60Hz 220V/50Hz |
| Product Uses |
1. Chemical Industry It can transport resin slurry, paint slurry, ink slurry, and acid and alkali slurry, and is suitable for continuous feeding, material transfer, and media transfer between processes in chemical workshops. 2. Building materials sector The conveying and spraying of mortar, cement slurry, putty, and tile adhesive is suitable for scenarios such as building construction and building material production. 3. Mining and metallurgy sector The transfer of mineral slurry, tailings slurry, and metallurgical waste slurry meets the continuous transportation needs of scenarios such as mine stockyards, metallurgical workshops, and tailings ponds. 4. Food and Daily Chemical Industry Made of food-grade stainless steel, it can transport jams, ketchup, chocolate paste, cream paste, as well as shampoo paste and laundry detergent viscous materials from the daily chemical industry, making it suitable for the operating scenarios of food processing plants and daily chemical plants. 5. Environmental Protection Treatment and transportation of municipal sludge, printing and dyeing sludge, papermaking black liquor, and landfill leachate; applicable to scenarios such as sewage treatment plants, printing and dyeing plants, paper mills, and landfill treatment stations. |
| Product Operation Guide |
1. Before powering on: Check that the pump body is securely installed, the pipeline is leak-free, and the lubricating oil level is within the specified range. Verify that the power supply matches the nameplate, and briefly start the motor to confirm the correct rotation direction. Primate the pump to remove air, avoiding dry running. 2. Running: Open the discharge valve → start the motor → adjust the feed valve to the target flow rate, and monitor the pressure and current to ensure they are within the rated range. Observe the pump body for any abnormal vibration or noise, and ensure there is no leakage at the seals. 3. During shutdown Normal shutdown: Close the feed valve → disconnect the power → close the discharge valve; for conveying easily condensable media, flush the pump body and pipeline. Emergency shutdown: In case of a malfunction, immediately disconnect the power, troubleshoot, and then restart. Note: Idling is strictly prohibited. Clean the filter regularly; drain the pump medium when the pump is shut down for extended periods. |
| Frequently Asked Questions |
1. Pump body cannot draw material/Insufficient flow rate The pump is not filled with medium and air is present; the suction pipe is blocked or leaking; the medium viscosity exceeds the rated range; the impeller is severely worn. 2. The pump body vibrates excessively and makes obvious abnormal noises. The mounting base is not stable; the coaxiality of the motor and pump shaft is greatly deviated; the bearing is lacking oil or is damaged; hard impurities have entered the impeller. 3. Leakage at sealing points The seals are aged or worn; the sealing gland is not properly tightened; the pump shaft is deformed or has excessive runout. 4. Motor overload tripping The medium viscosity is too high, resulting in excessive conveying resistance; the discharge valve opening is too small, leading to excessive pipeline pressure; or the motor bearing is faulty or the wiring is abnormal. 5. The head does not reach the rated value. Impeller wear and blockage; excessive pipeline resistance loss; excessive solid content in the medium, resulting in poor fluidity. |
