| Introduce the basic functions of the product |
1. Leak-free media delivery The submersible design is suitable for conveying corrosive and volatile media, eliminating the risk of leakage. 2. Solid-liquid mixing pumping It can transport liquids containing a small amount of solid particles, meeting the needs of sewage, slurry and other working conditions. 3. High-efficiency and energy-saving operation The optimized hydraulic model results in low power loss and supports long-term continuous operation. 4. Start-up of the pump without priming It can be directly immersed in the medium without the need for priming or venting, and can be put into operation immediately after startup. |
| Usage Environment |
1. Media compatibility: It can transport clean water, sewage, corrosive liquids, and mixtures containing a small amount of solid particles. 2. Installation conditions: Vertical immersion installation, suitable for various liquid storage tanks and vessels, no additional pump room required. 3. Operating Conditions: Medium temperature -20℃~120℃, avoid long-term transportation of highly abrasive and high-viscosity media. |
| Product Advantages |
1. No leakage: Submersible shaftless design eliminates media leakage. 2. No-priming pump: Direct immersion, ready to run upon startup, easy to operate. 3. Saves space: No pump house required, vertical installation, saving on infrastructure costs. 4. Wide compatibility: Corrosion and wear resistant, suitable for conveying corrosive and particulate media. 5. Low failure rate: Stable operation, few vulnerable parts, and low maintenance costs. |
| Technical parameters |

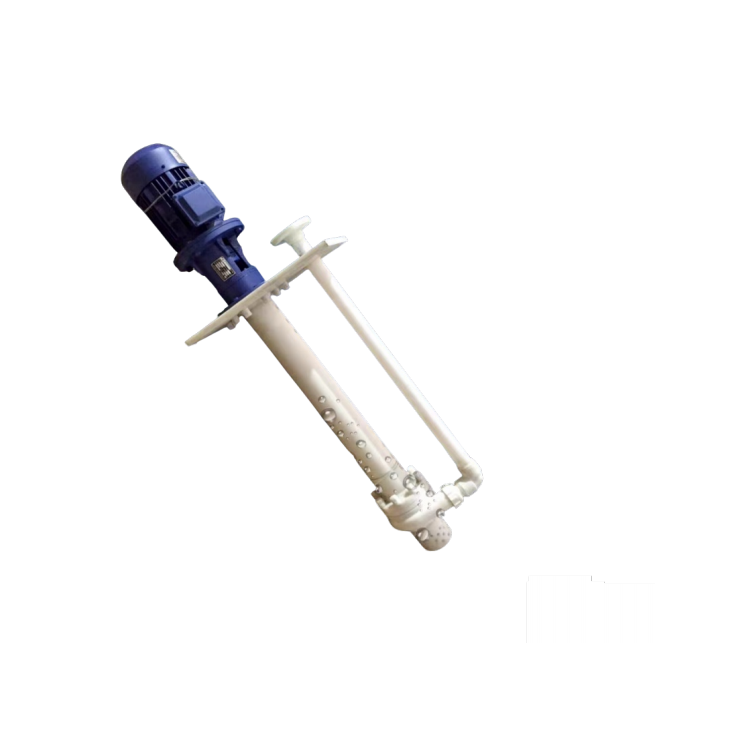

| type | FY Submersible Pump |
| Material | Cast iron / Stainless steel (304/316) / Rubber lining |
| Driver type | electric |
| Installation type | Vertical immersion installation |
| Maximum caliber | DN200 |
| Maximum flow | 300m³/h |
| Maximum head | 80m |
| Maximum power | 75kW |
| Protection level | IP55 |
| Insulation class | F-level |
| Standard voltage | 380V three-phase 50Hz (660V, etc., can be customized) |
| Product Uses |
1. Chemical industry: Transportation of acid, alkali and corrosive media 2. Environmental Protection Sector: Sewage and wastewater treatment upgrade 3. Metallurgical mines: Slurry and tailings liquid transportation 4. Petroleum and Light Industry: Crude oil and liquid extraction5. Municipal Agriculture:River dredging and farmland irrigation |
| Product Operation Guide |
1. Post-installation checks: Confirm that the immersion depth meets the standard, the power supply and rotation are correct, and the fasteners are not loose. 2. Startup: No priming pump is required; simply power on the machine and slowly open the outlet valve to the rated operating condition. 3. Operation monitoring: Observe the current, pressure, and vibration; idling and overload operation are strictly prohibited. 4. Shutdown: First close the outlet valve, then disconnect the power supply; if the pump is to be shut down for an extended period, the medium inside the pump must be drained and rust prevention measures should be taken. |
| Frequently Asked Questions |
1. Pump fails to pump fluid: Insufficient immersion depth, blocked suction tube, or incorrect steering. 2. Vibration and abnormal noise: Impeller wear imbalance, pump shaft bending, or loose fasteners. 3. Insufficient flow rate and head: The medium contains impurities that block the flow channel, or the operating conditions exceed the rated range. 4. Motor overload: The medium viscosity is too high, the outlet valve opening is too large, or the voltage is unstable. 5. Component corrosion and leakage: Inappropriate material selection, or the corrosiveness of the medium exceeds the suitable range. |
