| Quantity: | |
|---|---|
| Introduce the basic functions of the product |
| 1.High-efficiency clean water transfer 2.Pipeline pressure boosting & stabilizing 3.Industrial circulation water supply 4.Horizontal convenient installation 5.Continuous stable operation |
| Usage Environment |
1.Clean water & similar media 3.Horizontal inline installation 4.Ventilated & dry site 5.3-phase standard voltage 6.Non-corrosive working condition |
| Product Advantages |
| 1.High efficiency, low consumption 2.Horizontal mounting, easy connection 3.Compact structure, small footprint 4.Stable operation, low noise 5.Back pull-out design, easy maintenance 6.Closed impeller, high lift 7.Durable material, long service life 8.Wide adaptability, multi-scenario |
| Technical parameters |

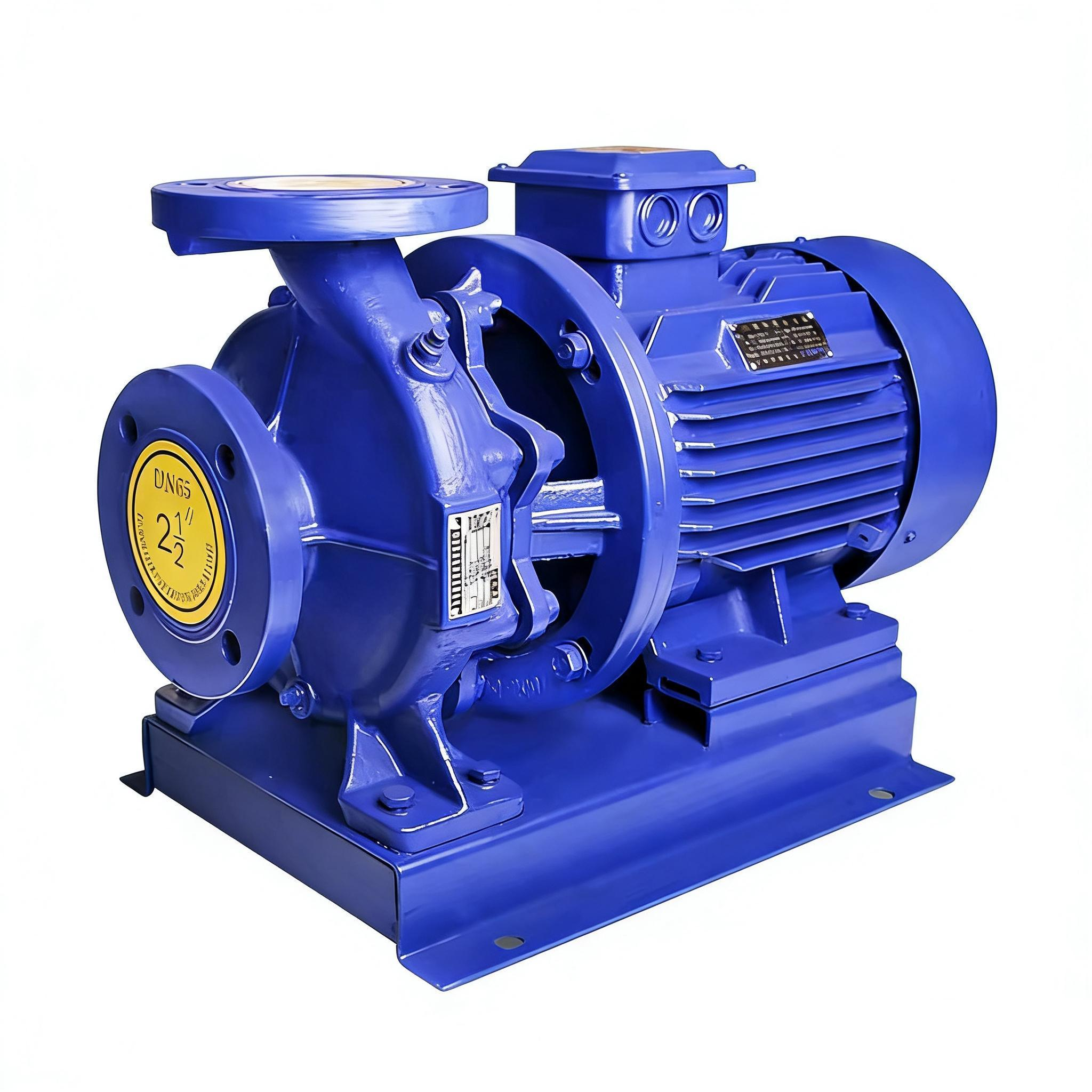

| type | ISW 卧式管道离心泵 |
| Material | 铸铁 、不锈钢 304/316 |
| Driver type | 电动 |
| Installation type | 卧式 |
| Maximum caliber | DN300（12 英寸） |
| Maximum flow | 1200 m³/h |
| Maximum head | 125 m |
| Maximum power | 90 kW |
| Protection level | IP54 |
| Insulation class | F 级 |
| Standard voltage | 380V/50Hz、220V/60Hz、440V/60Hz |
| Product Uses |
| 3-Step Operation 1.Before Start：Check power, valves, medium. Full of liquid, no dry running. 2.During Operation：Open valves, start pump, adjust to rated parameters. Monitor current and leakage. 3.After Shutdown：Close outlet valve → Stop pump → Close inlet valve. Drain medium for long-term shutdown. |
| Frequently Asked Questions |
| 1.Dry running, mechanical seal damage 2.Impeller blockage, reduced flow rate 3.Abnormal voltage, motor overheating 4.Improper installation, vibration and noise 5.Seal aging, interface leakage 6.Impeller wear, insufficient head 7.Filter blockage, inlet negative pressure 8.Overload operation, motor tripping |
