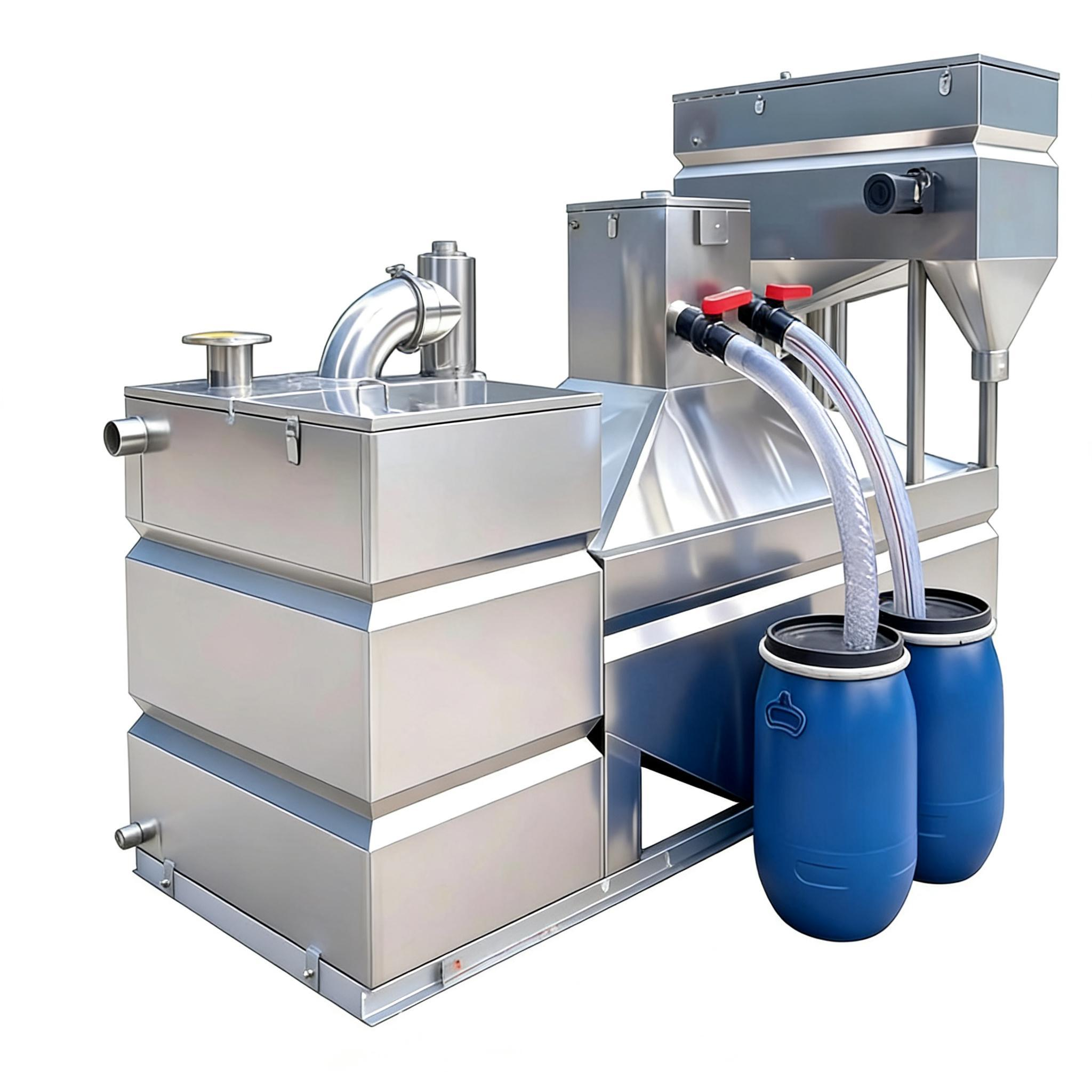

Integrated Oil Water Separator

1. Solid-liquid pretreatment filtration: Built-in bar screens or filters intercept large particulate impurities such as food scraps and suspended solids in wastewater, preventing internal blockages.

2. High-efficiency oil-water separation: By employing multiple technologies such as inclined tube sedimentation, coalescence separation, and gravity stratification, rapid separation of the oil phase and water phase is achieved, effectively removing grease from wastewater.

3. Automatic oil collection and drainage: After separation, the grease automatically floats to the oil collection area, and is automatically discharged at regular intervals or in fixed quantities through pneumatic, hydraulic or electric oil discharge devices, eliminating the need for manual cleaning.

4. Sludge sedimentation and collection: The equipment has a sludge storage area at the bottom, where suspended particles settle and aggregate under gravity, making it easy to clean regularly or automatically discharge sludge.

5. Wastewater discharged in compliance with standards: The treated wastewater has a significantly reduced oil content and can be directly discharged into the municipal pipe network or enter the subsequent sewage treatment system.

I. Applicable Scenarios

1. Food and beverage service industry: Commercial kitchens for restaurants, hotels, hot pot restaurants, barbecue restaurants, fast food chains, etc.

2. Group dining units: School, hospital, enterprise, and government agency canteens, and military logistics kitchens.

3. Food processing industry: Production workshops of meat processing plants, fried food factories, pastry factories, beverage factories, etc.

4. Industrial production sector: Factories that generate mineral oil wastewater, such as those engaged in machining, hardware manufacturing, auto repair, and gas stations.

5. Other public places: Catering areas in airports, train stations, and shopping malls; wastewater treatment plants in large complexes.

II. Operating Environment Requirements

1. Installation environment: It can be installed indoors or outdoors (outdoor installation requires a rain and sun protection canopy), with good ventilation, and is convenient for equipment inspection and maintenance.

2. Temperature conditions:Normal operating temperature is 0~40℃; for low temperature environments (below 0℃), heating and insulation devices are required; for high temperature environments (above 40℃), high temperature resistant materials are required.

3. Installation location: Located near the source of wastewater for easy pipe connection, the site must be flat and have load-bearing capacity, with reserved interfaces for drainage, oil discharge, and power supply.

4. Medium conditions:Suitable for wastewater treatment containing animal and vegetable oils and mineral oils. The pH value of the wastewater should be in the range of 6 to 9. If the pH value is outside the range, please specify in advance and customize special equipment.

1. Integrated design, easy installation

It integrates filtration, separation, oil discharge, and collection functions, eliminating the need for a separate grease trap. It has a small footprint and can be quickly installed both indoors and outdoors.

2. Automated operation saves manpower

Automatic oil discharge and automatic filtration, with some models supporting automatic sludge discharge and backwashing, eliminate the need for manual cleaning and significantly reduce operation and maintenance costs.

3. High-efficiency separation, achieving emission standards.

Employing multiple separation technologies, the oil-water separation efficiency is high, and the oil content of the treated wastewater is far below the national standard, allowing it to be directly discharged into the municipal pipe network.

4. Highly durable and has a longer lifespan

The main body is made of 304/316 stainless steel, which is corrosion-resistant, impact-resistant, and not easy to clog. The overall service life of the equipment can reach more than 10 years.

1.Commercial kitchen backyards

2.Enterprise & institution canteens

3.Food processing workshops

4.Auto repair shops & gas stations

5.Catering areas in transportation hubs

1. Pre-power-on checks: Confirm that the inlet and outlet water pipes, oil drain pipes, and power supply connections are normal and there are no blockages or leaks.

2. Start running: Once the power is connected and the inlet and outlet water valves are opened, the equipment will automatically enter the working state.

3. Routine monitoring: Observe the equipment's operating indicator lights and check the oil and water levels regularly to ensure normal separation.

4. Oil and sludge removal: In automatic mode, the equipment drains oil periodically; in manual mode, the oil and sludge drain buttons need to be activated as needed.

5. Shutdown maintenance: Turn off the power, close the inlet and outlet water valves, clean the impurities from the screen, and perform equipment maintenance.

1.Failure to start, indicator light off

2.Oil discharge pump not working

3.Low separation efficiency, high oil content in effluent

4.Oil solidification in winter, difficult to discharge

5.Abnormal noise and large vibration during operation

6.Seal leakage and shell corrosion
