| Quantity: | |
|---|---|
| Introduce the basic functions of the product |

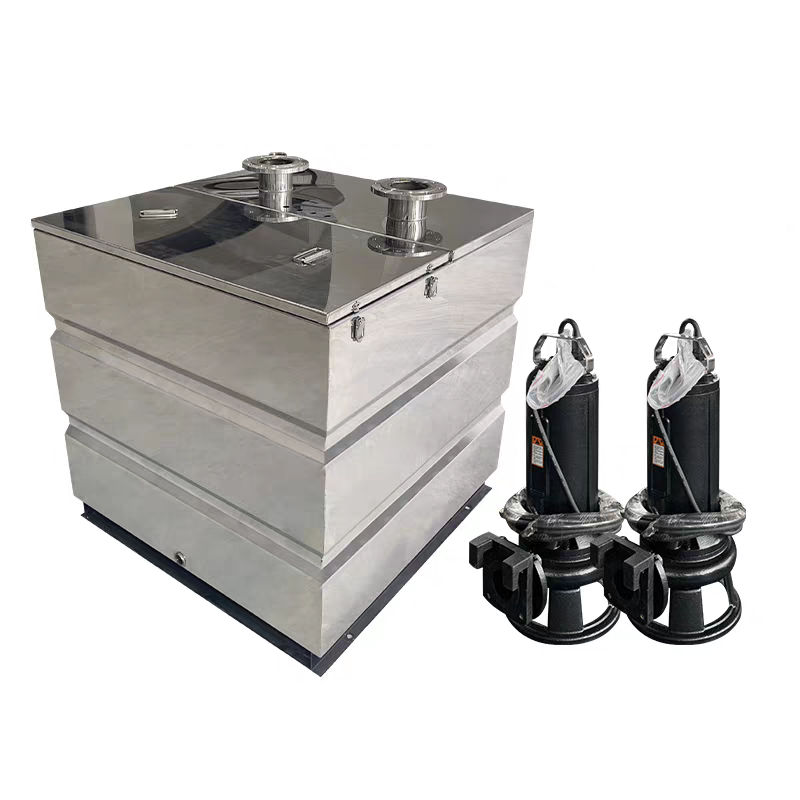

1. Wastewater collection and temporary storage With a built-in sealed water storage tank, it can collect domestic sewage and industrial wastewater from low-lying areas (basements, negative floors) for temporary storage and prevent sewage overflow. 2. Impurity crushing and cutting Equipped with a high-power cutting and grinding pump, it can crush solid impurities (paper towels, food scraps, fibers, small debris) in sewage into fine particles, fundamentally solving the problem of pipe blockage. 3. Boosting and Emission The high-pressure power of the built-in booster pump pressurizes the collected sewage and forces it to be lifted into the municipal drainage network or sewage treatment equipment, breaking through the height limit of gravity drainage. 4. Automatic Operation and Control Equipped with a liquid level sensor and intelligent control system, it can automatically start and stop: when the sewage reaches the set high liquid level, the equipment will automatically start to lift; when the liquid level is low, it will automatically stop, without the need for manual operation. 5. Safety Protection and Early Warning It has overload protection, dry burning protection, and overflow protection functions. When the equipment experiences abnormal conditions such as motor overload, idling, or sewage overflow, it will automatically stop and trigger an alarm to ensure the safe operation of the equipment. |
| Usage Environment |
I. Applicable Scenarios 1. Low-lying areas for building construction: Basement bathroom/kitchen, underground floor sewage outlet, underground garage drainage point 2. Commercial venues: Underground facilities of hotels/office buildings/shopping malls, and kitchen wastewater discharge from food courts 3. Public facilities: Drainage from subway stations/underground passages, and sewage discharge from hospital/school basements. 4. Industrial light pollution scenarios:Collection of light wastewater from small factory workshops and sewage from auto repair shops/car washes 5. Municipal end: Renovation of pipe networks in old residential areas and upgrading of decentralized sewage treatment facilities in rural areas II. Operating Requirements 1. Installation environment: Indoor/semi-enclosed space, well-ventilated and dry, with reserved space for maintenance. 2. Temperature conditions: 0~40℃ (select antifreeze version for low temperature environments) 3. Media requirements: Domestic sewage and light industrial wastewater (non-corrosive, non-flammable and non-explosive) 4. Load-bearing capacity:The installation surface must be flat and have a load-bearing capacity greater than or equal to the weight of the equipment plus the weight of the water tank. |
| Product Advantages |
1. Integrated design, easy installation It integrates sewage collection, crushing, lifting and control, eliminating the need for separate sump pits and pump rooms. It occupies a small area and can be quickly installed both indoors and outdoors, significantly shortening the construction cycle. 2. Intelligent automation saves labor costs. Equipped with a liquid level sensing and automatic control system, it enables unattended automatic start and stop; it features multiple safety protections and automatic fault alarms, eliminating the need for real-time manual monitoring and reducing operation and maintenance costs. 3. Prevents clogging and odor, and ensures stable operation. With a built-in high-power cutting and grinding pump, it can crush various solid impurities in sewage, fundamentally solving the problem of pipe blockage; the fully enclosed structure, combined with a special odor-proof valve, effectively prevents odor leakage and ensures more stable operation. 4. Overcomes terrain limitations and has strong adaptability. Relying on high-pressure lifting power, it can easily solve drainage problems in low-lying areas such as basements, negative floors, and the end of pipe networks. The lifting height can be customized as needed to adapt to the drainage needs of different buildings and scenarios. |
| Technical parameters |
| type | Integrated sewage lifting equipment |
| Material | 304 stainless steel / 316 stainless steel |
| Driver type | electric drive |
| Installation type | Underground installation |
| Maximum caliber | DN150 |
| Maximum flow | 50 m³/h |
| Maximum head | 50 m |
| Maximum power | 15 kW |
| Protection level | IP54(indoor)/IP65(outdoor) |
| Insulation class | F-level |
| Standard voltage | 380V/50Hz, 220V/50Hz 220V/60Hz, 440V/60Hz |
| Product Uses |
1.Basement toilets & kitchens 2.Underground facilities of commercial complexes 3.Subway stations & underground passages 4.Car wash & auto repair workshops 5.Old community & rural pipeline reconstruction |
| Product Operation Guide |
1.Check: Ensure pipes and power are connected properly. 2.Start: Turn on power and valves, auto-run mode activated. 3.Monitor: Observe indicator lights, no manual attendance needed. 4.Maintain: Clean filter regularly, inspect the pump. 5.Stop: Turn off power and valves, drain all water. |
| Frequently Asked Questions |
1. Startup failure: Check power connection → Reset emergency stop → Replace fuse 2. Drainage failure: Clean pump impurities → Check pipe blockage → Calibrate level sensor 3.Frequent start-stop: Adjust level threshold → Clean filter → Check for water leakage 4.Loud noise/vibration: Tighten loose parts → Adjust installation level → Replace worn bearings 5.Leakage/odor: Replace gasket → Tighten flange → Check tank for cracks 6.Overload shutdown: Reduce inflow → Clean pump blockage → Check motor winding |
