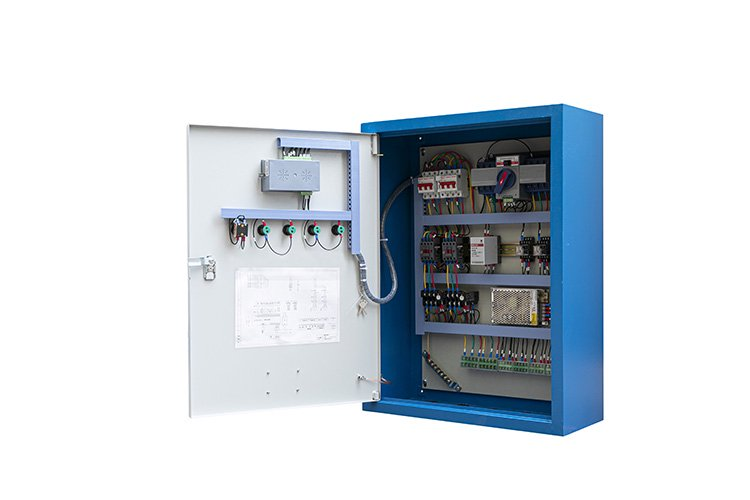

Power control cabinet

1.Dual-mode start/stop: Supports manual operation and automatic start/stop upon receiving sensor signals; multi-pump systems can switch between primary and backup pumps and rotate in cycles.

2.Operation regulation: Soft starters reduce impact, and frequency converters regulate speed to achieve constant pressure/constant flow water supply, saving energy and reducing consumption.

3.Safety protection: Integrated overload, short circuit, phase loss, and undervoltage protection; automatic shutdown and alarm in case of fault. Status monitoring and linkage: Displays operating status and can be connected to external systems (such as fire alarm systems) for linkage control.

1. Temperature and Humidity: Temperature range: Generally -10℃ to +40℃. If the cabinet contains special components (such as PLCs or frequency converters), it is recommended to control the temperature between 0℃ and +35℃ to avoid high-temperature aging or low-temperature condensation.

2. Humidity Requirements: Relative humidity ≤90% (at 25℃), with no condensation, to prevent internal components from short-circuiting due to moisture. The environment should be clean, free from dust, corrosive gases (such as acids, alkalis, and salt spray), and flammable and explosive media. If used in dusty or humid environments (such as pump rooms or sewage treatment plants), a cabinet with a protection rating ≥IP54 should be selected, or a ventilation filter and rain cover should be installed.

3. Installation Site: The cabinet should be installed on a flat, solid ground or wall to avoid severe vibration and impact, preventing loose internal wiring or component damage. Keep away from strong electromagnetic interference sources (such as large transformers and welding machines), and install electromagnetic shielding measures if necessary.

4. Special scenarios requiring outdoor use: Outdoor control cabinets must be selected, with a protection rating of not less than IP65, and possessing sun protection, rain protection, and dust protection capabilities. Flammable and explosive environments (such as oil and gas stations, chemical pump rooms): Explosion-proof water pump control cabinets must be used, meeting the corresponding explosion-proof standards.

1. Safe and reliable with fewer malfunctions: Integrated with multiple electrical protections including overload, phase loss, and short circuit, automatically shutting down and alarming in case of malfunction; the cabinet has an IP rating for dust and water resistance, adapting to harsh pump room environments and reducing equipment failure rates and maintenance costs.

2. Intelligent control, saving manpower: Supports manual/automatic dual-mode switching, and can be connected to level and pressure sensors for unattended start-stop; multi-pump systems support main/standby rotation, balancing equipment wear and extending overall service life.

3. Energy saving and low cost: Variable frequency models can adjust pump speed according to operating conditions to achieve constant pressure water supply, saving 20%–50% of electricity compared to fixed frequency operation; soft-start design reduces current surges, protecting the power grid and pipelines, and reducing future maintenance costs.

4. Flexible and adaptable to various scenarios: Customizable with direct start, soft start, variable frequency, and other types, matching different pumps such as centrifugal pumps, submersible pumps, and fire pumps; supports linkage with fire alarm, building automation, and other systems to meet the needs of water supply and drainage, fire protection, irrigation, and other scenarios.

5. Convenient operation and maintenance: easy to operate. The cabinet indicator lights clearly display the operating status, and the standardized wiring with terminal blocks facilitates debugging and maintenance; some high-end models are equipped with HMI human-machine interface, which can view parameters and record faults in real time, making troubleshooting more efficient.

1. Building Construction: High-rise secondary pressurized water supply, basement drainage, hot water circulation.

2. Fire Protection Systems: Fire hydrants, automatic sprinkler system water supply linkage.

3. Industrial Production: Equipment cooling water circulation, process liquid transportation, boiler feedwater.

4. Municipal Environmental Protection: Sewage treatment plant wastewater lifting, waterworks network pressurization, landscape water circulation.

5. Agriculture and Animal Husbandry: Farmland greenhouse irrigation, livestock farm water supply and wastewater discharge.

6. Special Scenarios: Mine underground drainage, seawater desalination water supply.

1.Pre-start checks: Confirm power supply voltage is compatible, wiring is secure, and water pump piping is normal.

2. Mode switching: Manual: Switch to "Manual" mode and press the "Start/Stop" button to directly control the water pump. Automatic: Switch to "Automatic" mode; the control cabinet receives sensor signals and automatically starts and stops the water pump.

3. Operation monitoring: Observe the indicator lights. A lit power light indicates normal operation; a lit fault light requires stopping the machine for troubleshooting.

4. Shutdown operation: In manual mode, press "Stop"; in automatic mode, switch to "Manual/Stop". For long-term shutdown, disconnect the main circuit breaker.
