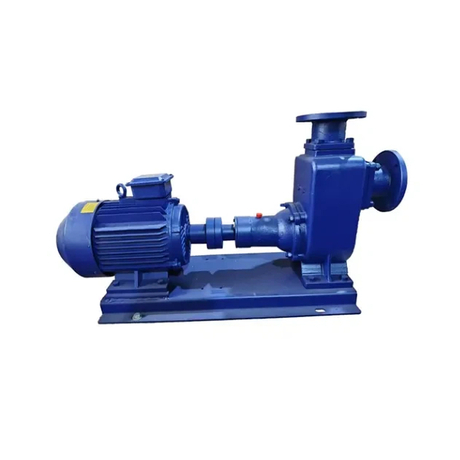

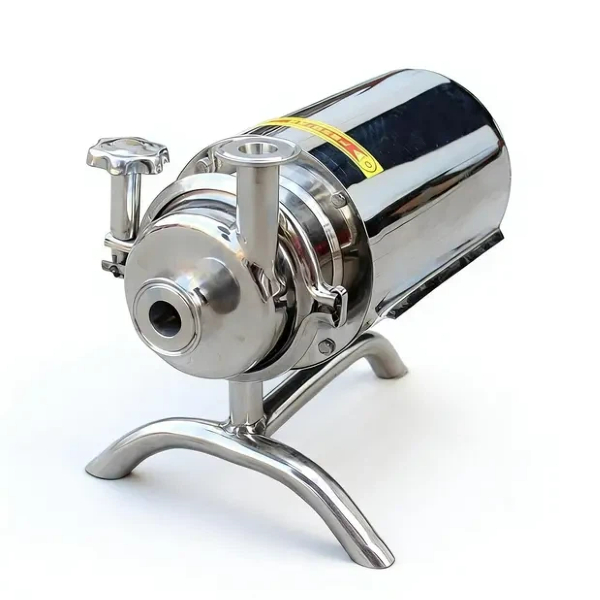

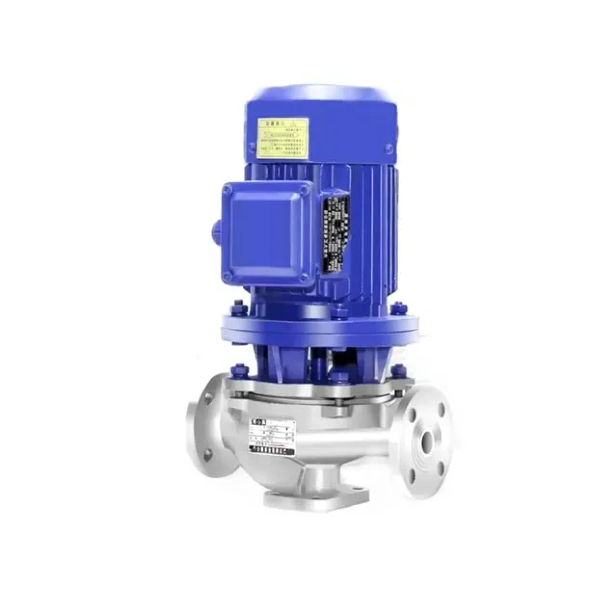

A centrifugal pump is a type of mechanical device used to move fluids by utilizing centrifugal force. This pump is the most commonly used pump in industrial and residential applications due to its simplicity, cost-effectiveness, and efficiency in handling different fluid types.
A vertical multistage centrifugal pump is a specific type of centrifugal pump designed to generate higher pressures with a vertical orientation. The pump consists of multiple impellers arranged in stages to increase the pressure of the fluid being transported. These pumps are preferred when high pressure is required in a compact space.
Key Features of Vertical Multistage Centrifugal Pumps:
Vertical configuration, occupying less space.
Multistage design for higher pressure and better head generation.
Suitable for applications requiring high pressure and moderate flow rates.
In this article, we will explore how these pumps work, their components, their applications, and why they are integral to modern fluid systems.
The working principle of centrifugal pumps is based on the concept of centrifugal force. As the pump’s motor drives the impeller to spin, it imparts velocity to the fluid. The rotating impeller pushes the fluid outward towards the pump casing, and this action increases the fluid's kinetic energy.
The fluid’s kinetic energy is converted into pressure as it exits the pump. This process helps in transporting the fluid from one location to another, typically over a long distance or at higher pressures.
Impeller: The heart of the pump, responsible for imparting velocity to the fluid.
Volute Casing: A spiral-shaped casing that helps convert kinetic energy into pressure.
Suction and Discharge Ports: Where the fluid enters and exits the pump.
Fluid enters the pump: The fluid is drawn in from the inlet port and guided toward the rotating impeller.
Impeller rotation: As the impeller rotates, the fluid is forced radially outward, increasing its velocity.
Pressure conversion: The fluid’s kinetic energy is converted into pressure as it flows through the volute casing.
Fluid discharge: The pressurized fluid exits the pump at the discharge port.
While a single-stage centrifugal pump uses a single impeller to generate pressure, a multistage centrifugal pump employs multiple impellers in series to increase the pressure step-by-step. This results in a higher head or pressure with each successive stage.
Feature | Single-Stage Pump | Multistage Pump |
Impellers | 1 | Multiple (2 or more) |
Pressure Output | Moderate pressure | High pressure |
Flow Rate | Higher flow rate, lower pressure | Moderate flow, higher pressure |
Application | Low-pressure applications | High-pressure applications |
Space Efficiency | Typically larger in size | More compact and vertical |
Vertical multistage centrifugal pumps have several advantages over horizontal designs. These pumps are typically used in applications that require high pressure, such as in water treatment systems, HVAC systems, and industrial fluid handling. The vertical design allows for efficient use of space, which is ideal for installations where horizontal space is limited.
A vertical multistage centrifugal pump consists of multiple impellers, each located in separate stages. The first impeller draws the fluid into the pump, and each subsequent impeller further increases the pressure of the fluid. This staged process enables the pump to achieve a much higher head than a single-stage pump.
Impellers: Typically made from durable materials such as stainless steel, these components rotate to impart velocity to the fluid.
Stages: Each impeller constitutes a stage, and multiple stages are stacked to achieve the required head and pressure.
The pump casing houses the impellers and directs the flow of the fluid. The shaft, which is driven by the motor, connects the impellers and transfers rotational motion. The casing is often made from corrosion-resistant materials to handle different fluids.
Bearings are used to support the shaft and reduce friction. Seals, particularly mechanical seals, are essential in preventing leaks of the fluid and maintaining the pump’s efficiency. Seals are placed at various points in the pump, including where the shaft enters the casing.
The operation of a vertical multistage centrifugal pump can be broken down into several key stages. Each stage in the pump adds to the overall pressure generation, and together they ensure that the fluid is pumped efficiently at high pressure.
At the first stage, the fluid enters the pump casing through the suction port. The first impeller begins rotating, drawing the fluid in and accelerating it outward, causing an increase in its velocity. The kinetic energy generated by the impeller is then converted into pressure as the fluid passes through the volute casing.
The fluid then enters the second stage, where it is again accelerated by the next impeller. The pressure from the first stage has already raised the fluid's pressure, and the second impeller increases it even further. The fluid continues through additional stages, each one adding to the pressure while maintaining or slightly reducing the flow rate.
Finally, after passing through all the stages, the pressurized fluid exits the pump through the discharge port. By the time it leaves the pump, it has achieved a high pressure, suitable for the intended application, such as water supply, HVAC systems, or industrial processes.
Several factors influence the efficiency of vertical multistage centrifugal pumps:
Flow Rate: The amount of fluid passing through the pump.
Pressure Head: The pressure generated by the pump, which determines how far the fluid can be moved.
Motor Capacity: The motor driving the pump must be appropriately sized to ensure the pump operates at optimal capacity.
Impeller Design: The design of the impellers affects both the pressure generation and the efficiency of the pump.
As each stage adds pressure to the fluid, the overall pressure head increases. However, it is important to note that as the pressure increases, the flow rate may decrease slightly. This trade-off must be balanced to achieve the desired output for specific applications.
Vertical multistage centrifugal pumps are widely used in a variety of industries due to their ability to handle high-pressure applications efficiently. Below are some common areas of use:
Water Supply Systems: In municipal and industrial water supply systems, these pumps provide the high-pressure flow needed to transport water over long distances.
HVAC Systems: For heating, ventilation, and air conditioning systems, these pumps circulate water through cooling towers, chillers, and other equipment.
Industrial Processes: Many industrial applications, such as chemical processing and cooling systems, rely on vertical multistage centrifugal pumps for fluid transfer.

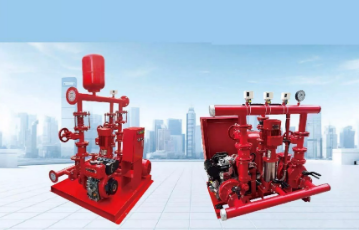

Fire Protection Systems: These pumps are often used in fire protection systems to provide the necessary water pressure for sprinkler systems.
A vertical multistage centrifugal pump is a vital piece of equipment for systems that require high-pressure fluid movement within a compact space. These pumps deliver exceptional performance, space efficiency, and versatility, making them ideal for a wide range of industrial, municipal, and residential applications. By utilizing multiple impellers arranged in stages, they effectively generate high pressure while maintaining moderate flow rates, ensuring reliable performance in demanding environments.
At Shanghai Diequan Water Pump (Group) Co., Ltd., we specialize in providing high-quality vertical multistage centrifugal pumps that cater to various industries. Our pumps are designed to offer exceptional reliability and consistent pressure, even in the most challenging conditions. Whether you're in need of efficient water supply solutions, HVAC systems, or industrial fluid handling, we are committed to delivering products that meet your specific requirements.
If you're looking for a reliable and efficient pump solution, feel free to get in touch with us to discuss how our products can benefit your system. Let us help you find the perfect solution for your needs.
A single-stage pump has one impeller and is suitable for applications requiring lower pressure, while a multistage pump has multiple impellers that generate higher pressure and are used for more demanding tasks.
They are preferred because their vertical design saves space, making them ideal for applications in confined areas, while their multistage setup enables them to achieve high pressure in a compact form.
Key factors include the flow rate, pressure head, motor capacity, and impeller design. These elements influence both the pressure generation and the pump’s overall efficiency.
These pumps are widely used in water treatment, HVAC systems, industrial fluid handling, and fire protection systems.
Regular maintenance involves checking for wear on bearings and seals, ensuring that the impellers are functioning properly, and monitoring for leaks or inefficiencies.
