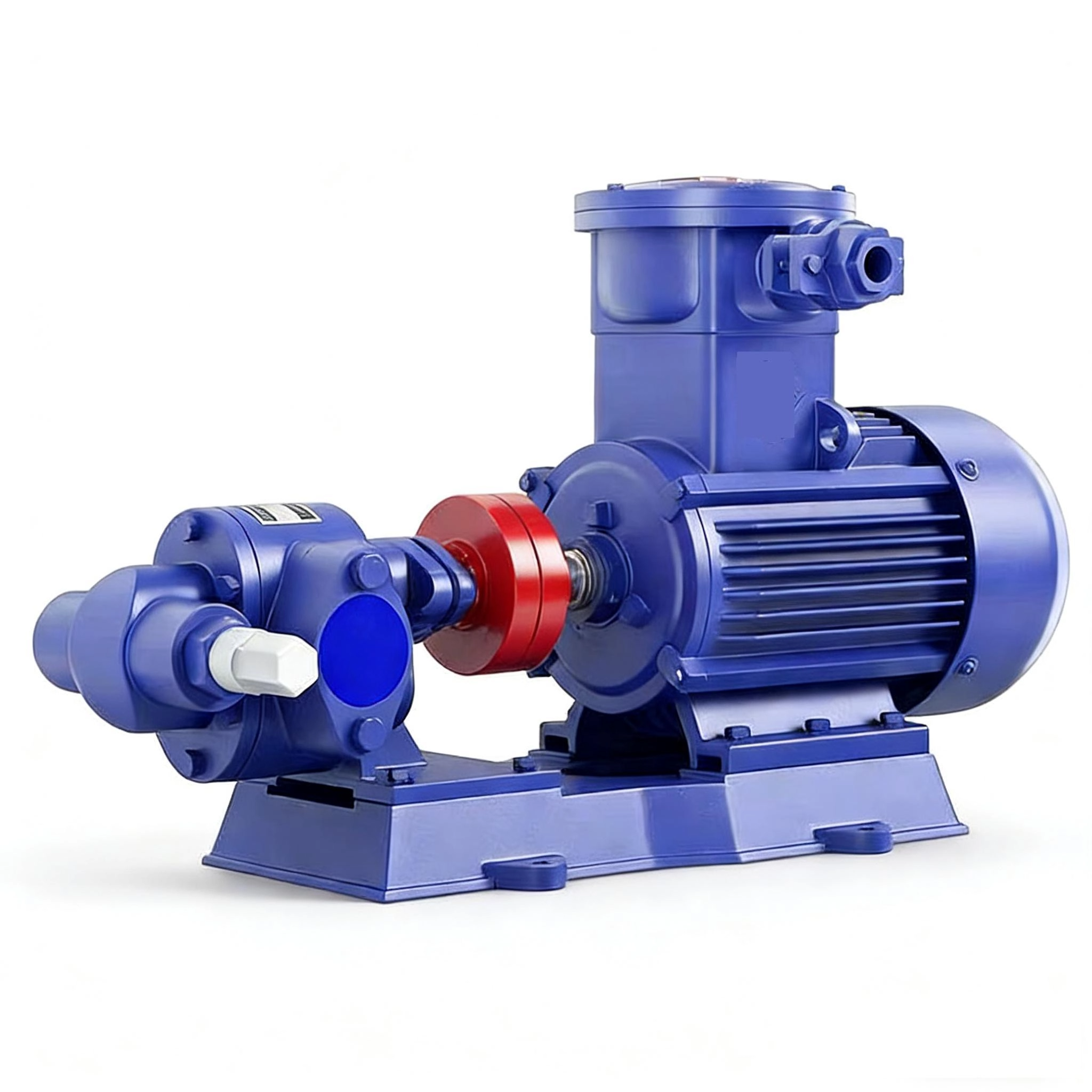

When you are dealing with aggressive fluids, a standard water pump won't cut it. You need a chemical pump specifically designed to handle the tough stuff. But what actually makes these machines different? Understanding the internal anatomy of an industrial chemical pump is crucial for anyone involved in maintenance, procurement, or plant operations.
In this guide, we will pull back the curtain on the essential components that allow a chemical pump to move corrosive liquids without self-destructing. From the specialized metallurgy of the casing to the precision engineering of the seals, every part plays a vital role in safety and efficiency.
The casing is the most visible part of a chemical pump. It acts as the pressure vessel that contains the fluid and directs it toward the discharge point. In industrial settings, the casing must be incredibly robust. Unlike standard pumps, a chemical pump casing is often lined or cast from exotic materials to ensure it is acid resistant.
Manufacturers often use materials like Stainless Steel 316, Hastelloy, or plastics like PFA and PVDF. These materials ensure the high pressure generated inside doesn't lead to a catastrophic rupture when handling corrosive liquids.
Volute Casing: Most common in centrifugal designs, it helps convert kinetic energy into pressure.
Concentric Casing: Often used in heavy-duty applications to reduce wear on the impeller.
Whether you are using it for water treatment or petrochemical processing, the casing’s integrity determines the pump's lifespan. We always recommend checking the chemical compatibility chart before selecting a casing material.
If the casing is the armor, the impeller is the heart. This rotating component transfers energy from the motor to the liquid. In a chemical pump, the impeller design changes based on what you are pumping.
Closed Impellers: Best for clear corrosive liquids and achieving high pressure.
Semi-Open Impellers: These handle small solids better, making them ideal for water treatment involving debris.
Open Impellers: Used for thick slurries or fluids with high solid content where clogging is a risk.
The impeller must be dynamically balanced. If it's off-center, it will vibrate, causing the industrial chemical pump to fail prematurely. When we look at acid resistant pumps, the impeller is often the first part to show erosion if the material isn't matched correctly to the chemical's pH level.
The shaft is the central rod that connects the motor to the impeller. It transmits the rotational power (torque) required to move the fluid. Because the shaft is often exposed to the liquid, it is a critical point of failure in any chemical pump.
To prevent the shaft from corroding, engineers use shaft sleeves. These are replaceable metal tubes that fit over the shaft. It is much cheaper to replace a sleeve than a full shaft.
| Feature | Function in Chemical Pump |
| Material | Often 4140 Alloy or Stainless Steel. |
| Alignment | Must be within microns to prevent seal leaks. |
| Sleeve Coating | Can be ceramic or chrome-oxide for extra wear resistance. |
A bent shaft is the "silent killer" of a high pressure chemical pump. It creates "shaft run-out," which destroys the mechanical seals and bearings in record time.
The mechanical seal is arguably the most complex part of a chemical pump. Its job is to prevent corrosive liquids from escaping where the shaft enters the pump casing. In an industrial environment, a leak isn't just a mess—it's a major safety hazard.
Standard rubber seals dissolve in acids. An acid resistant pump requires seals made of Silicon Carbide, Tungsten Carbide, or PTFE.
Single Mechanical Seal: Good for general use.
Double Mechanical Seal: The gold standard for toxic chemicals. It uses a "buffer fluid" between two seals to ensure zero leakage to the atmosphere.
Magnetic Drive (Sealless): Some chemical pumps remove the seal entirely, using magnets to turn the impeller. This is the safest way to handle the most dangerous corrosive liquids.
We see many failures for water treatment plants because they overlook seal flush plans. A proper flush keeps the seal faces cool and clean.
Bearings support the shaft and allow it to rotate smoothly with minimal friction. In a high pressure chemical pump, the bearings deal with significant "axial" and "radial" loads.
The bearing housing often contains an oil bath or grease to keep things moving. In extreme industrial applications, the housing might even have cooling fins or a water jacket.
Ball Bearings: Handle high speeds.
Roller Bearings: Better for heavy-duty, high pressure loads.
If you hear a high-pitched "screaming" sound from your chemical pump, your bearings are likely failing. Replacing them early saves the shaft and impeller from damage.
The power frame is the structural "bed" of the industrial chemical pump. It holds the bearing housing and connects the wet end of the pump to the motor.
A flimsy power frame leads to vibration. In high pressure applications, we need a heavy, cast-iron frame to absorb energy. The motor adapter (or bracket) ensures the motor stays perfectly aligned with the pump shaft.
Many acid resistant pumps feature a "back pull-out" design. This allows maintenance teams to remove the power frame and impeller for service without disconnecting the piping. This saves hours of labor during a plant shutdown.
To truly understand a chemical pump, we must look at the science of the materials. Not all "stainless steel" is created equal.
Metallic: Best for high pressure and high-temperature industrial jobs.
Non-Metallic (Plastic/Lined): Superior for corrosive liquids like Hydrochloric Acid which eat through most metals.
Most chemical pump failures happen because the liquid changed, but the pump stayed the same. For example, a pump designed for water treatment using Chlorine might fail if the concentration of the chemical is increased.
Note: Always verify your "Material of Construction" (MOC) against the specific concentration and temperature of your fluid.
Every part of a chemical pump—from the acid resistant casing to the precision-engineered mechanical seals—must work in perfect harmony. When you're dealing with high pressure and corrosive liquids, there is no room for error. Choosing an industrial pump with the right impeller and shaft protection ensures safety and keeps your operations running smoothly.
Whether you are managing a facility for water treatment or a massive chemical refinery, knowing these parts helps you troubleshoot problems before they become disasters.
Q: How often should I replace the seals in my chemical pump?
A: It depends on the fluid. For highly corrosive liquids, we recommend a monthly inspection. However, many industrial seals can last 1-2 years if properly flushed.
Q: Can I use a regular water pump for mild chemicals?
A: We advise against it. Even mild chemicals can degrade standard gaskets. An acid resistant pump is a much safer investment.
Q: What is a "Sealless" chemical pump?
A: This is a magnetic drive pump. It has no mechanical seal, making it the best choice for preventing leaks of dangerous or expensive chemicals.
